邏輯系統

jtsai1120
  2025-08-22 10:02:46 2025-08-22 10:02:46 Created   2025-08-22 10:50:36 2025-08-22 10:50:36 Updated    43 Words  1 Mins

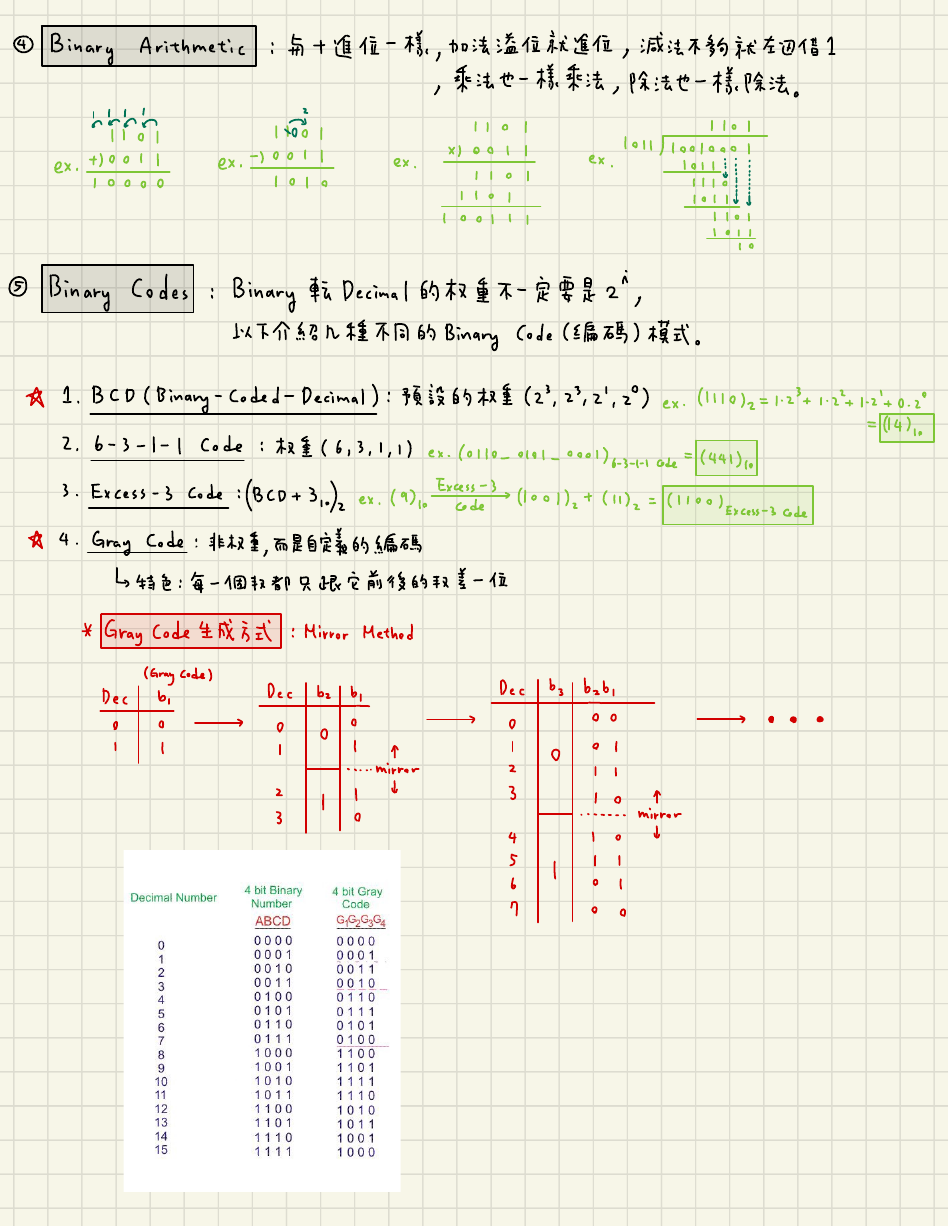

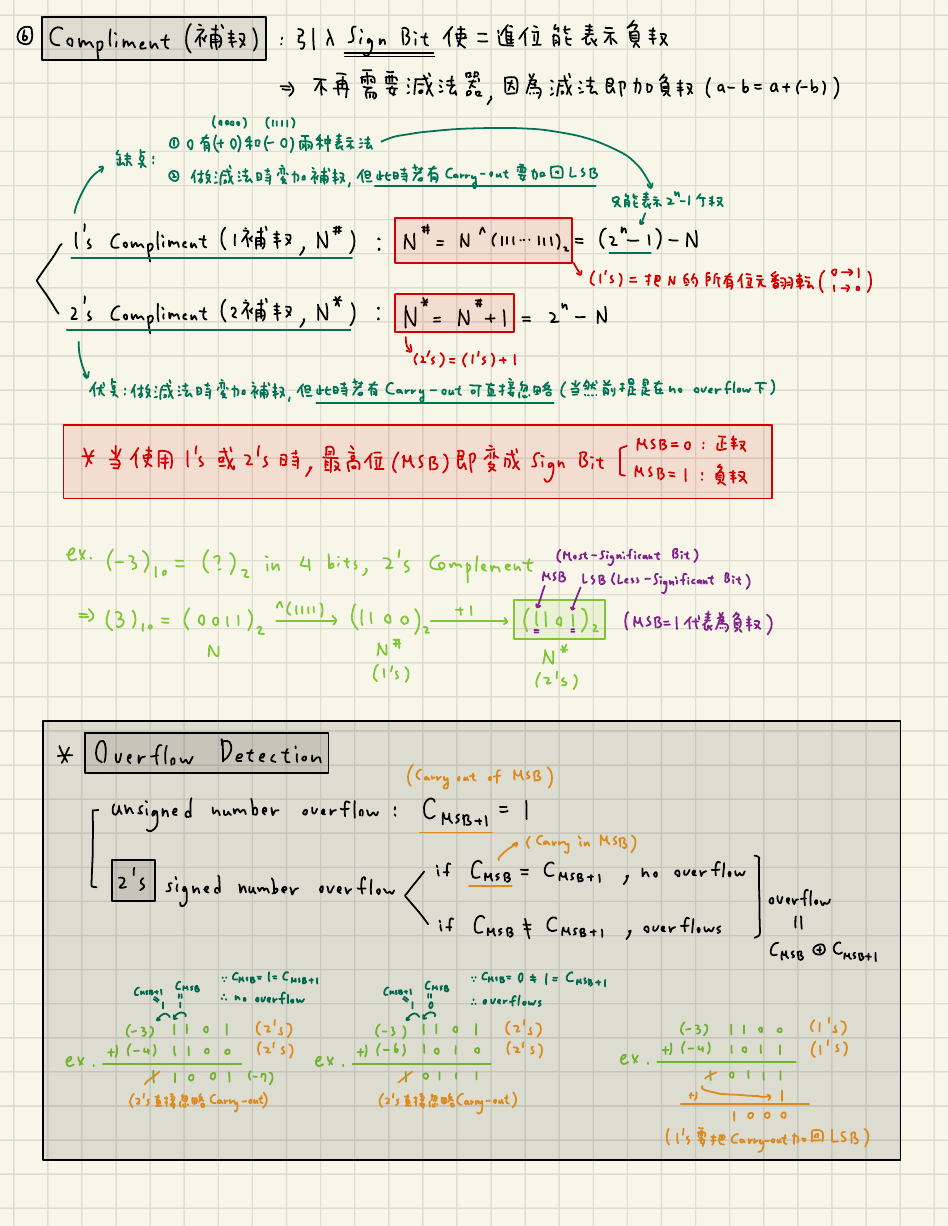

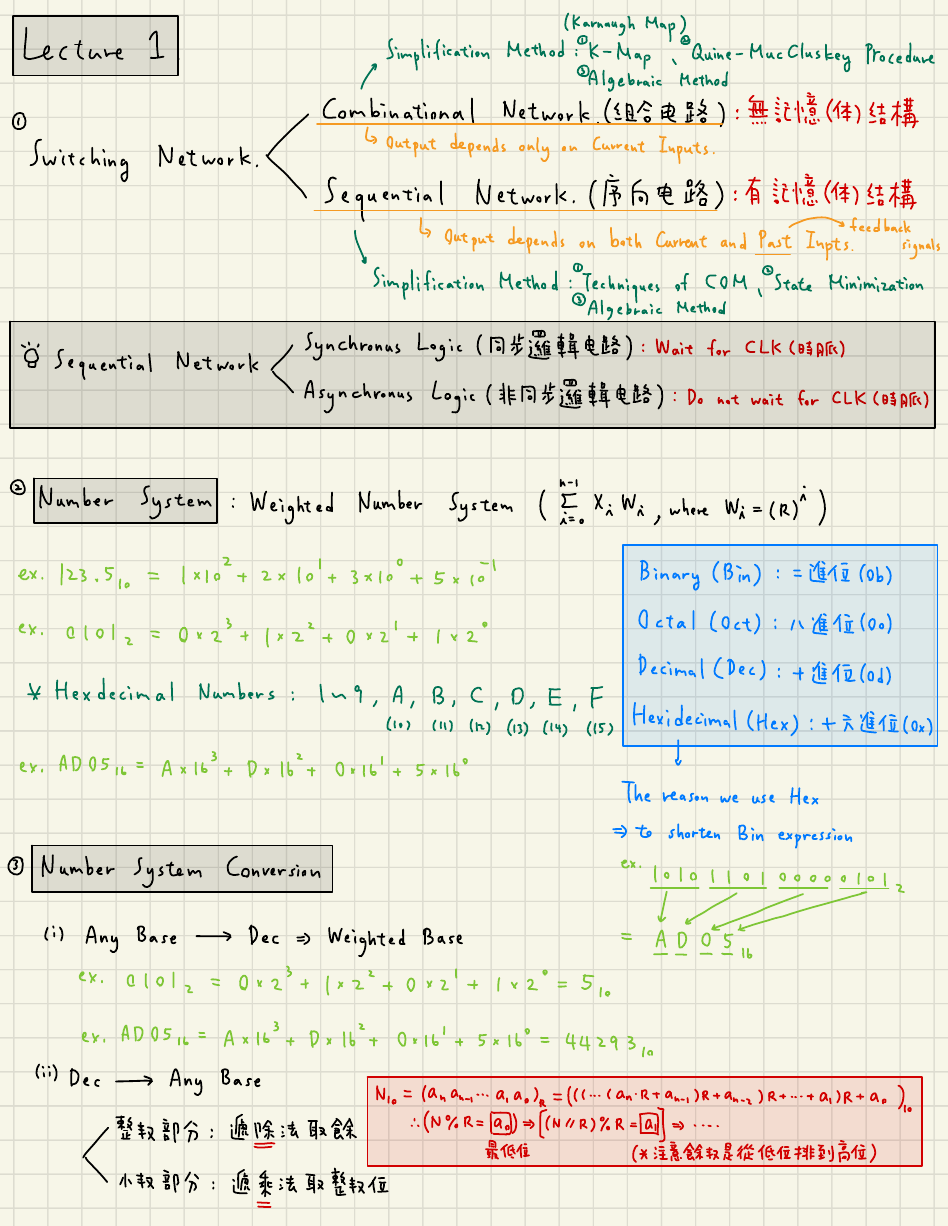

Outlines & Number Systems

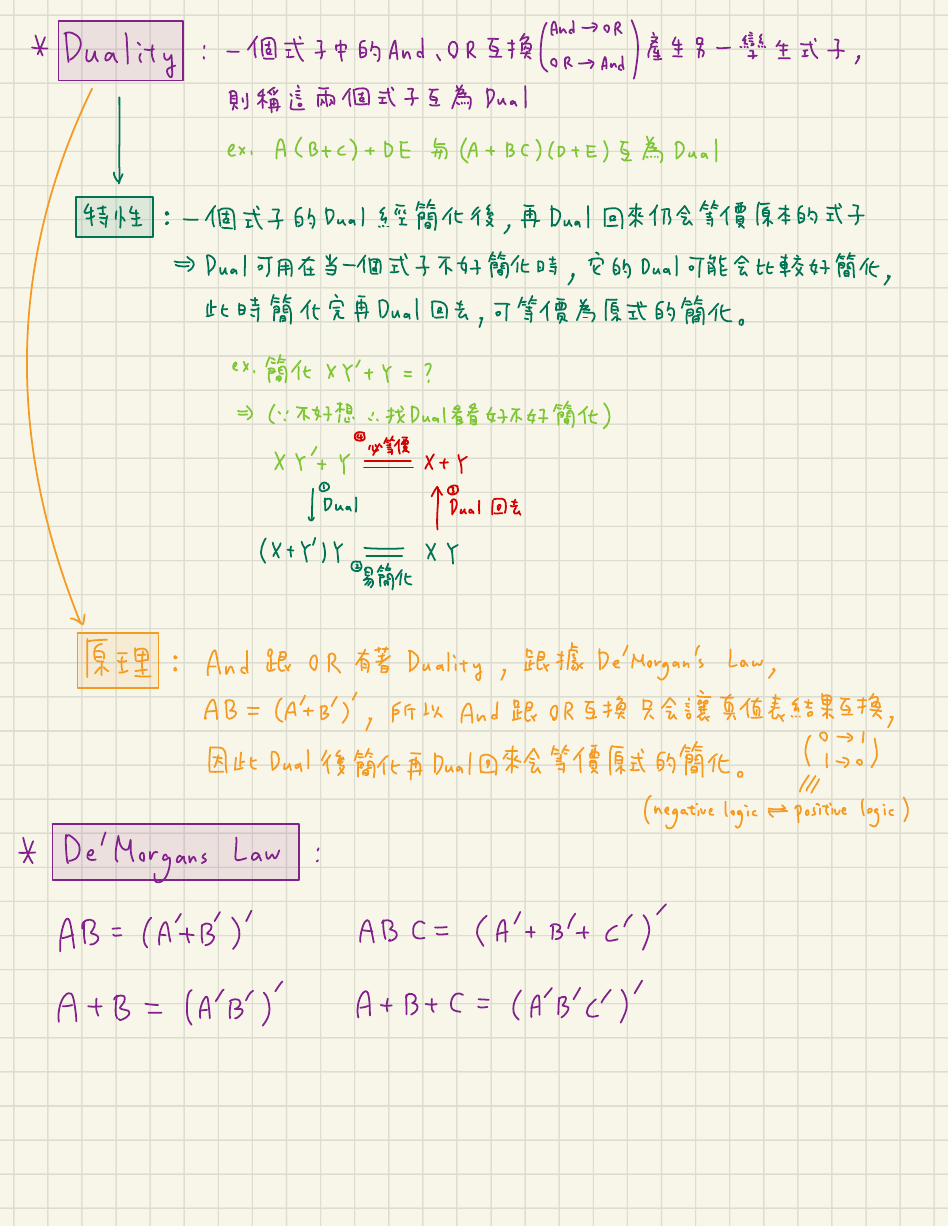

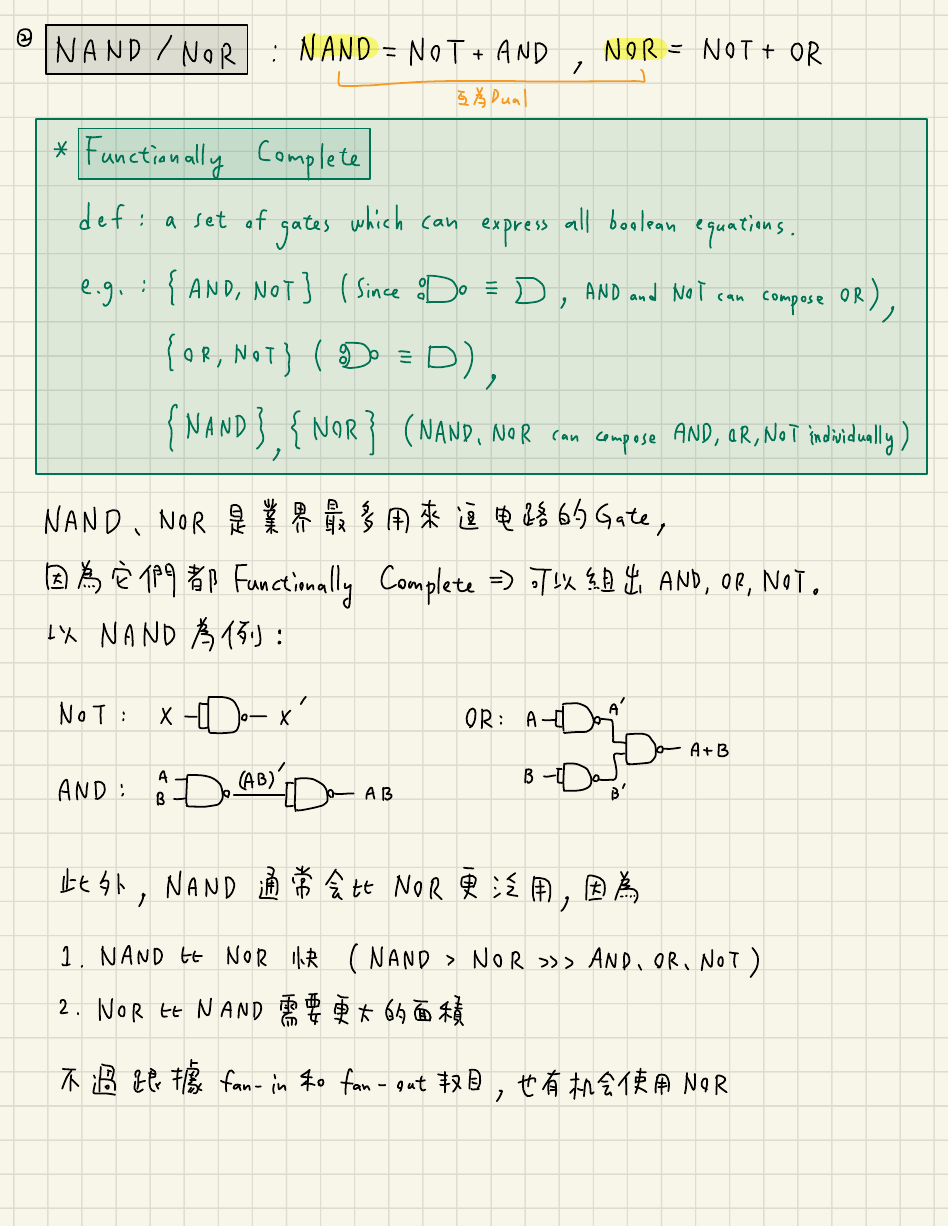

Boolean Algebra

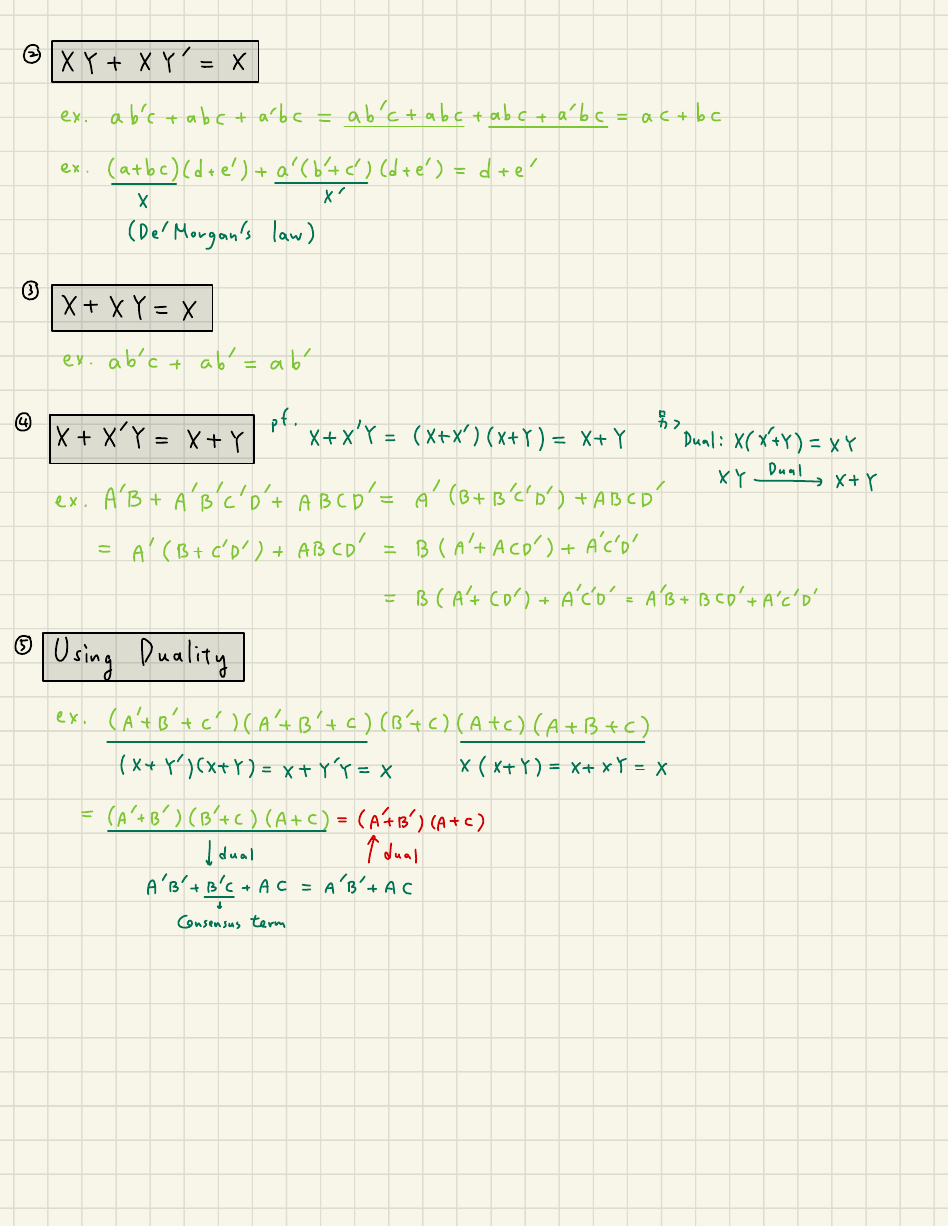

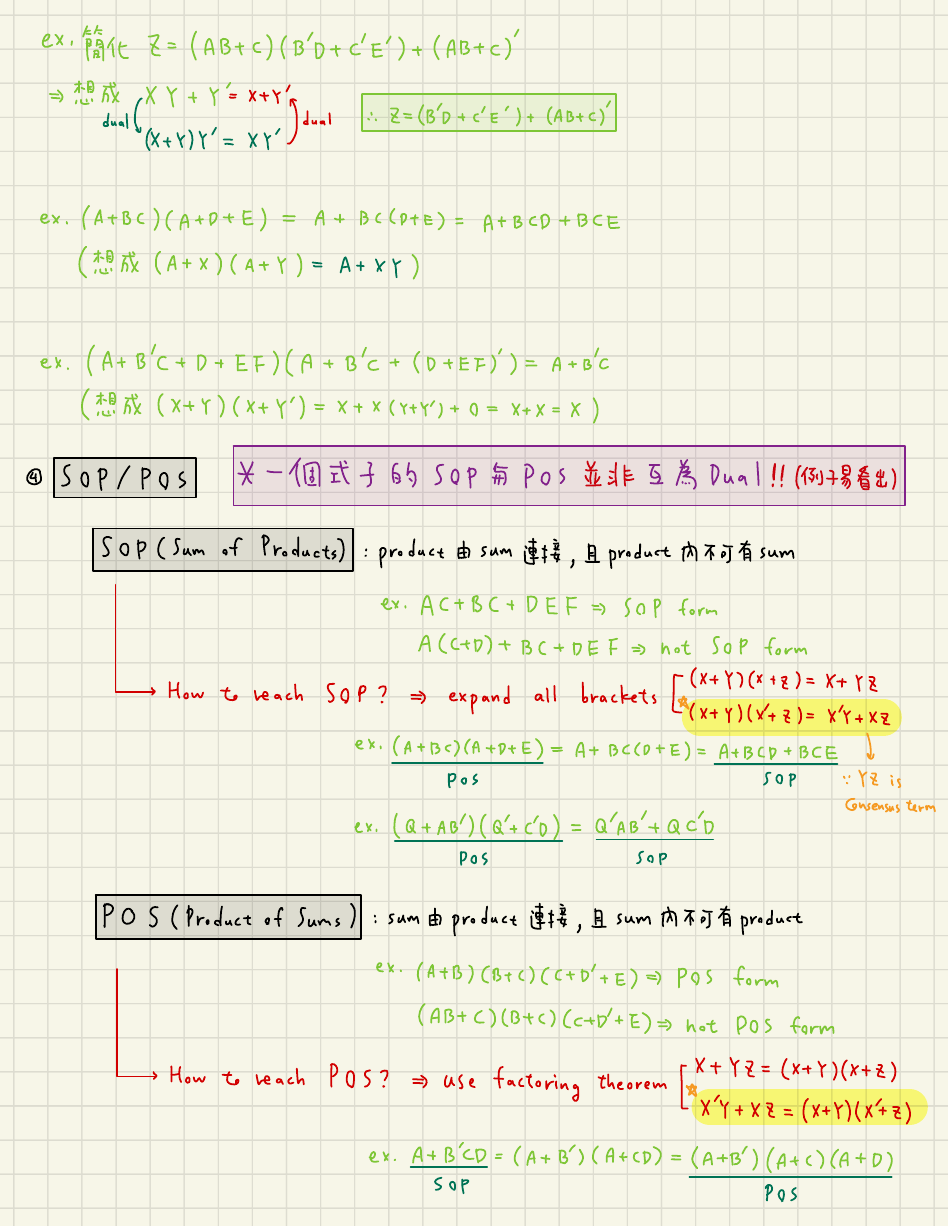

Algebraic Simplification


Minterm & Maxterm

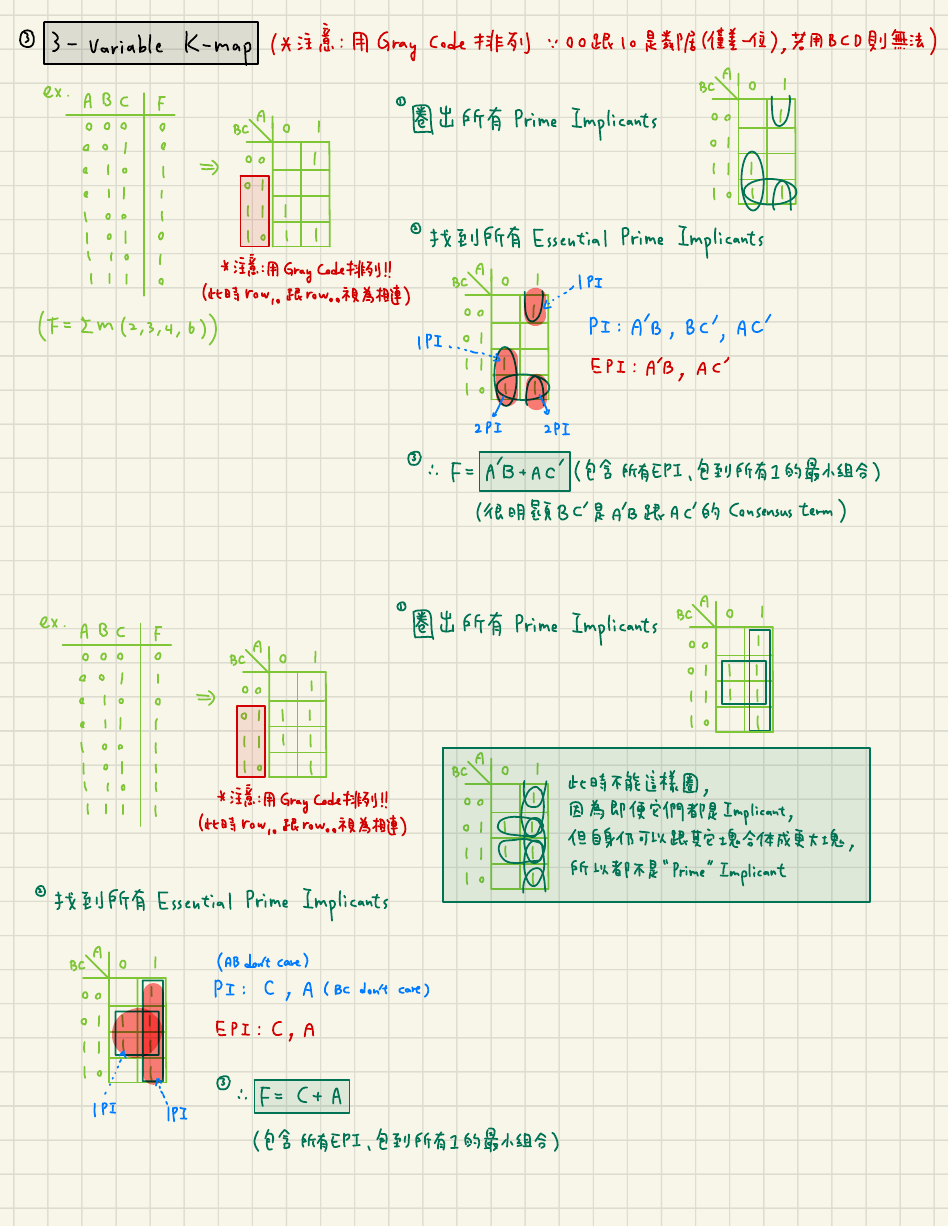

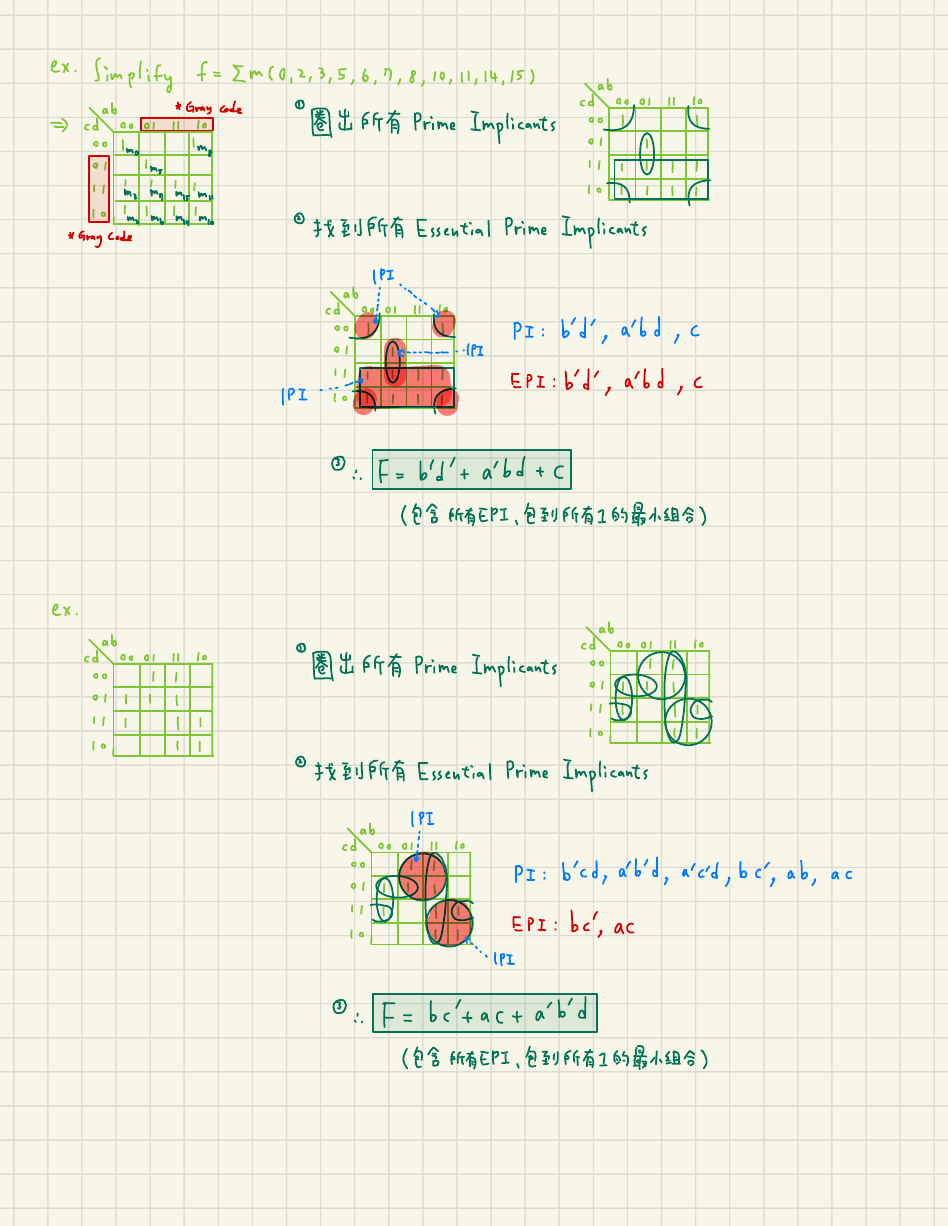

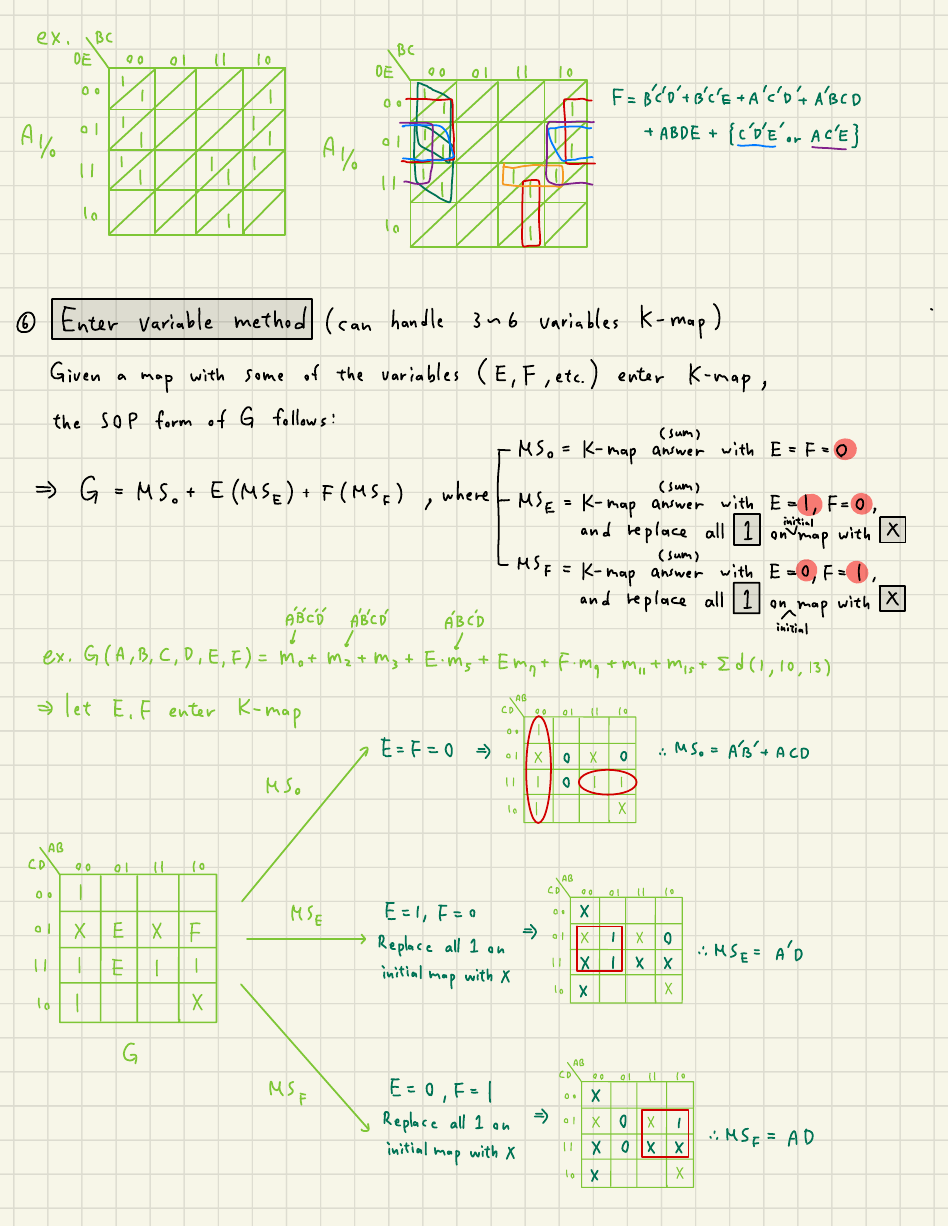

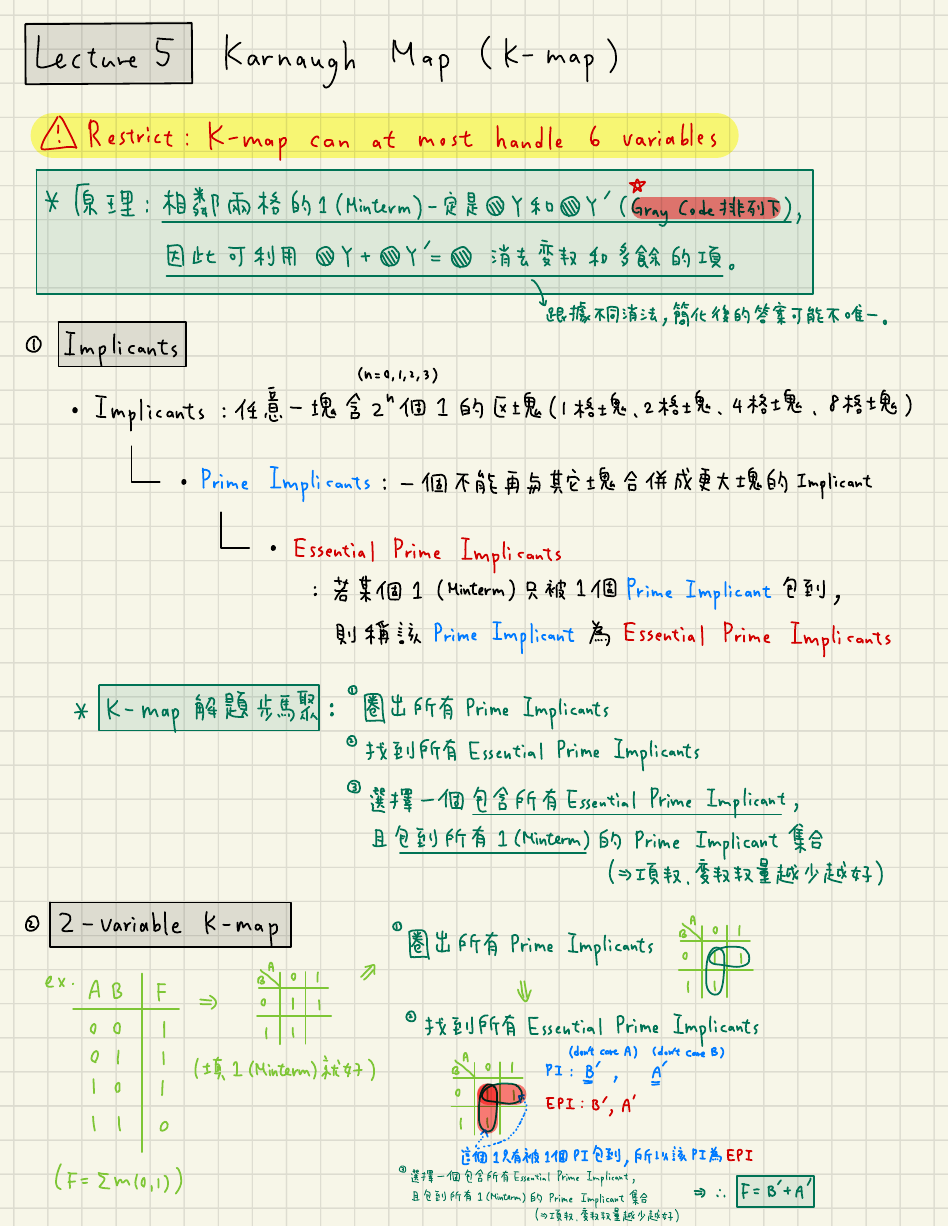

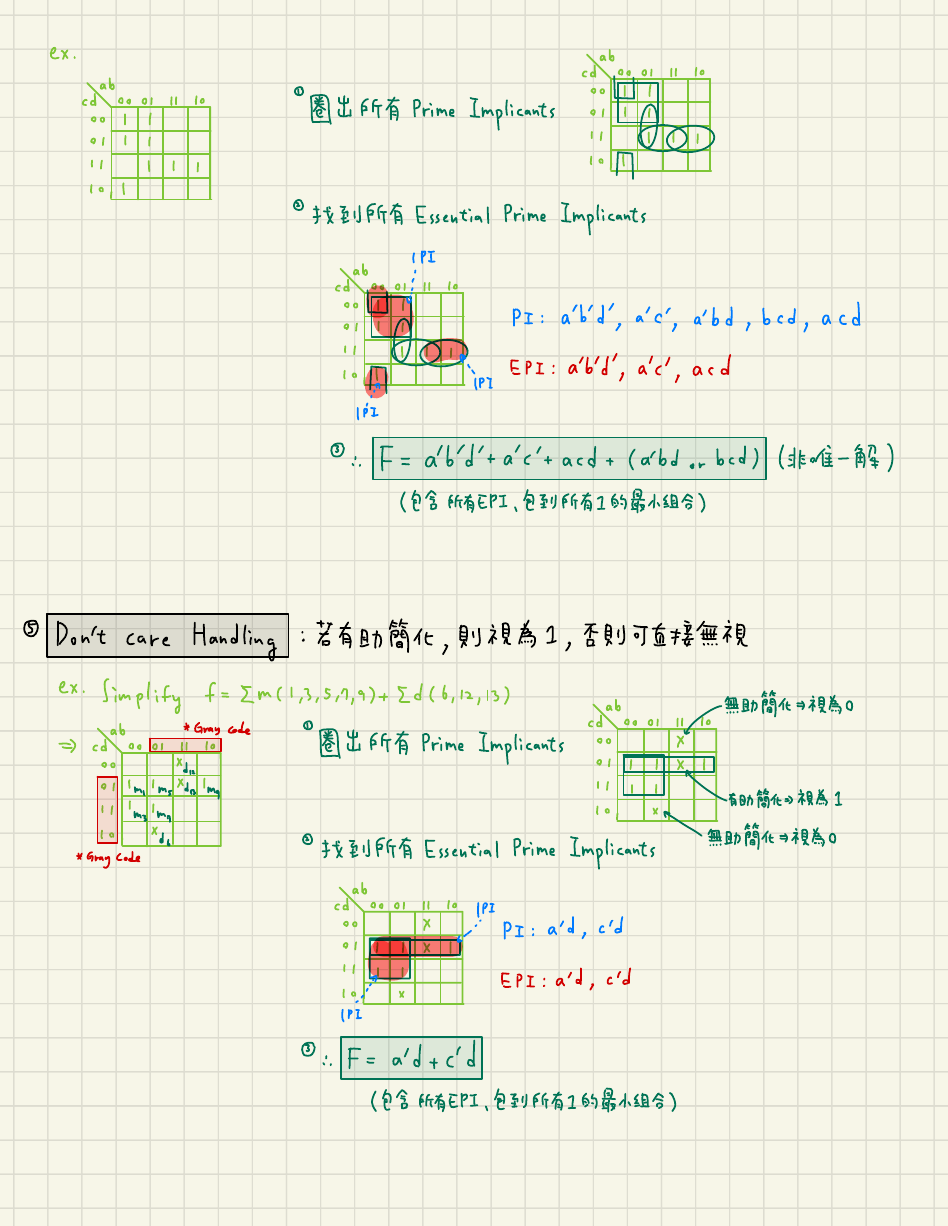

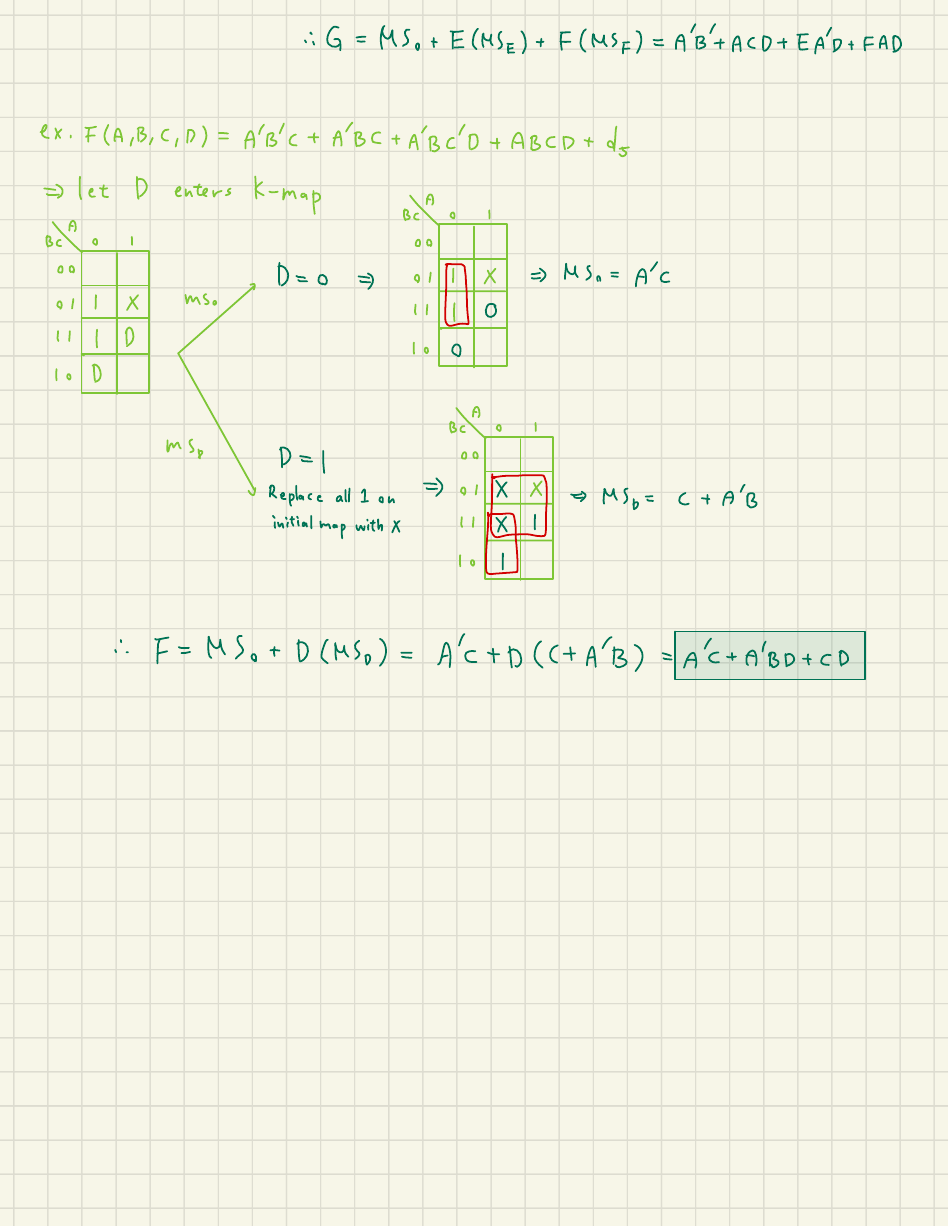

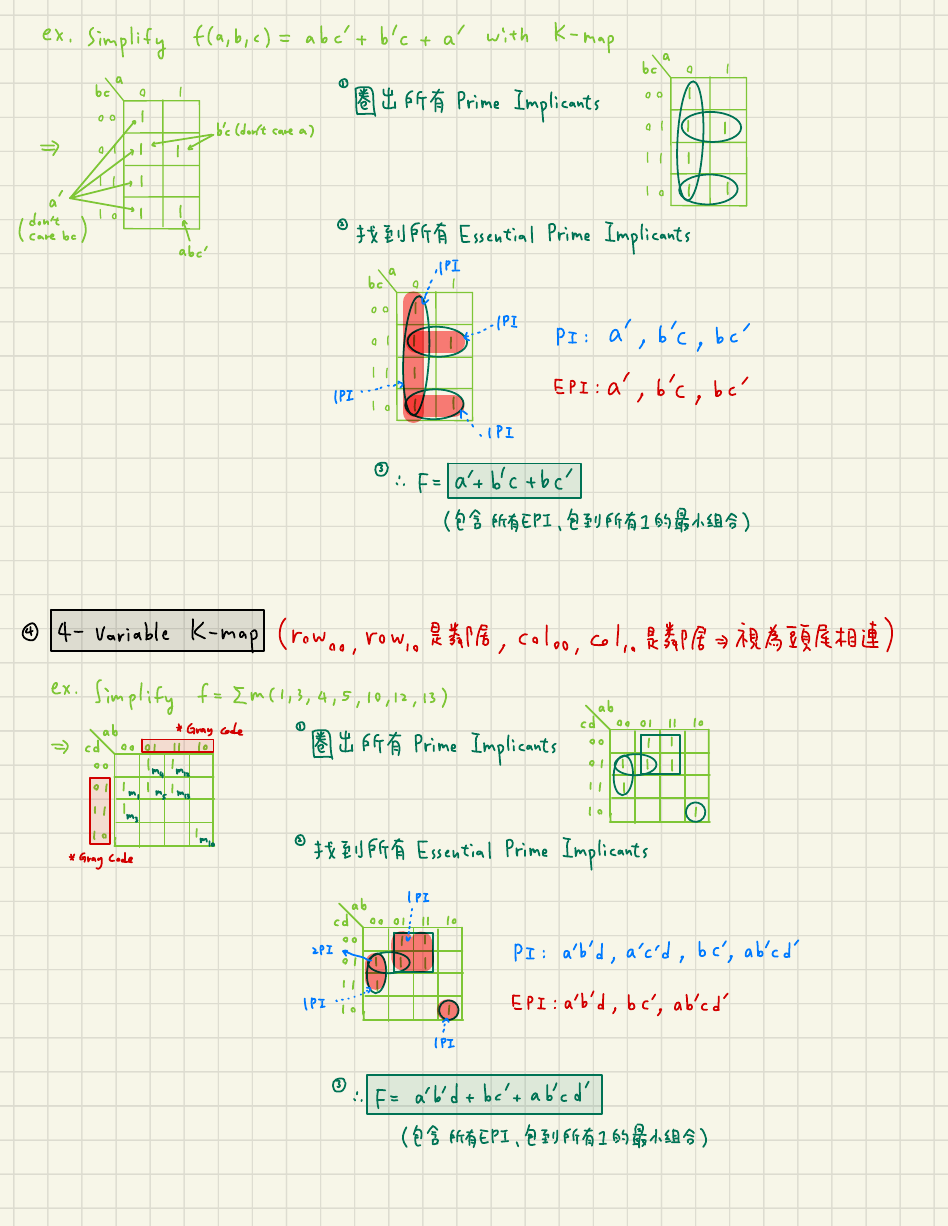

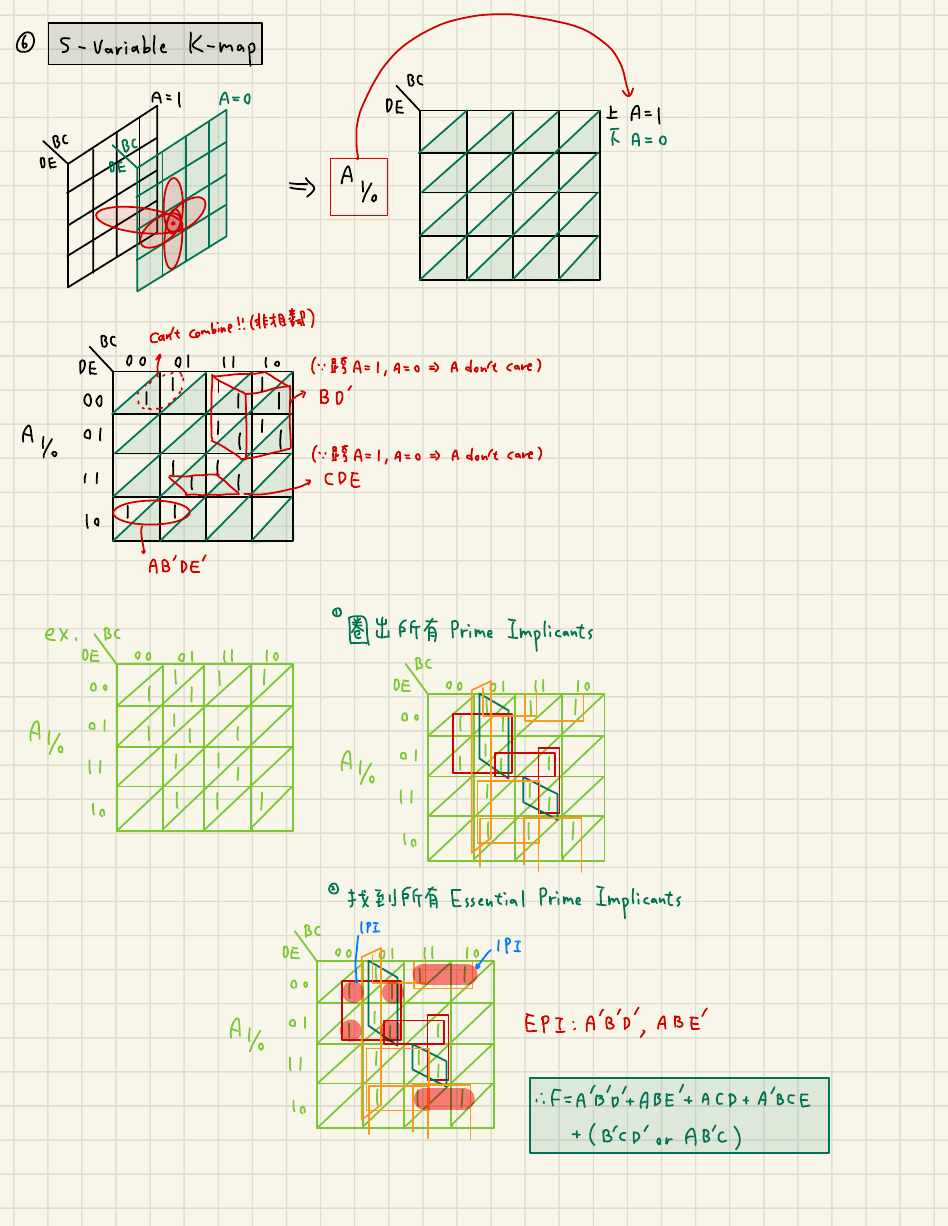

K-map

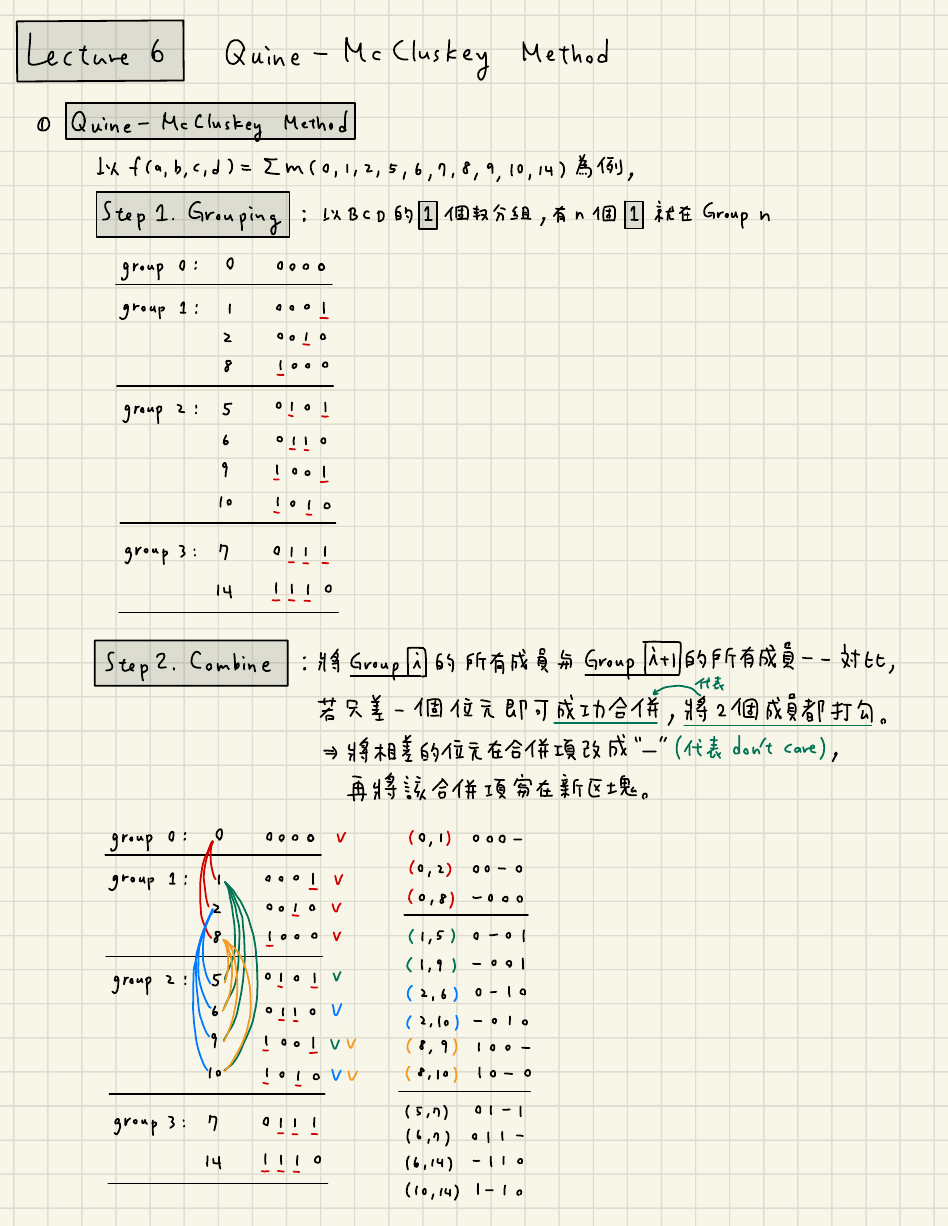

Quine-McCluskey Method

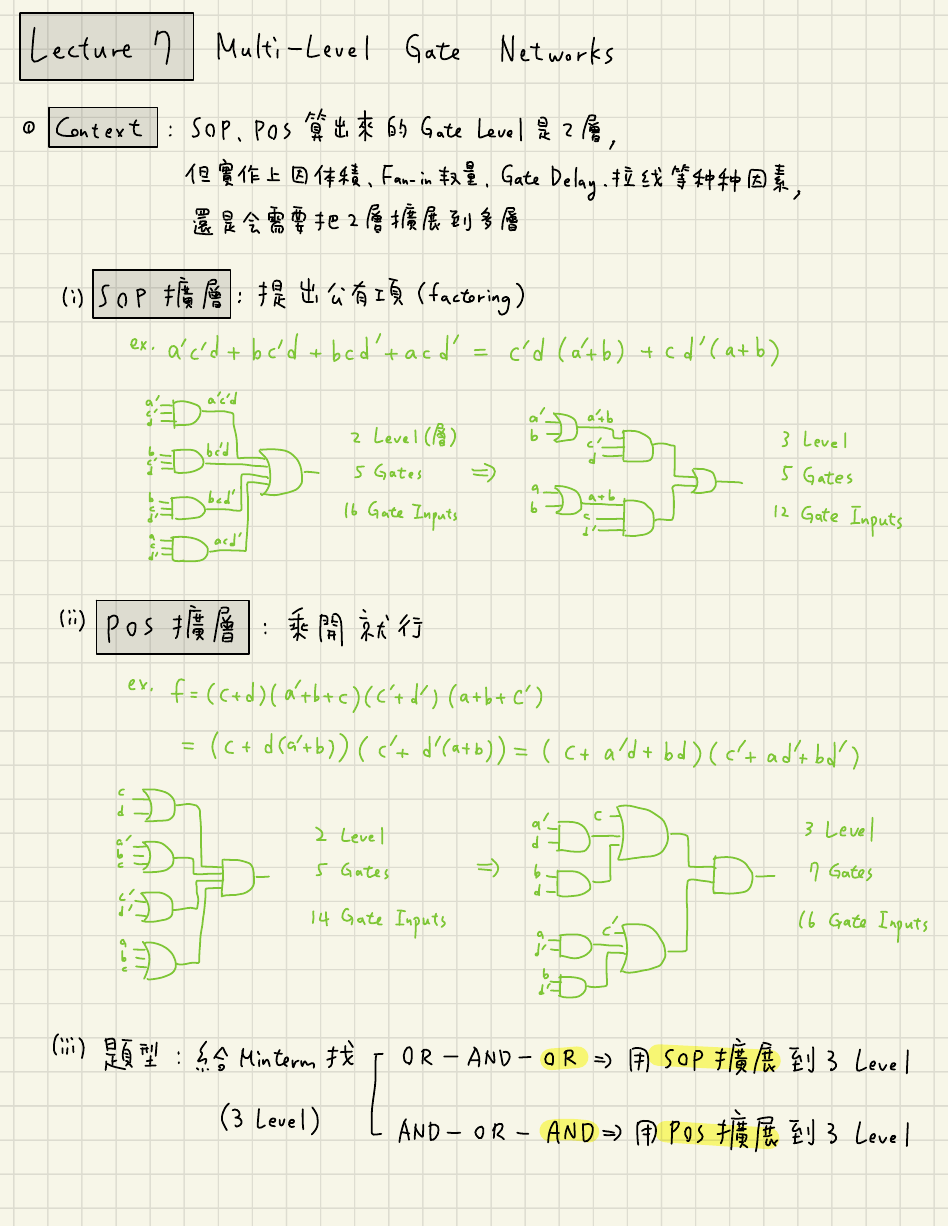

Multi-Level Gate Networks


Latch & Flip-Flop

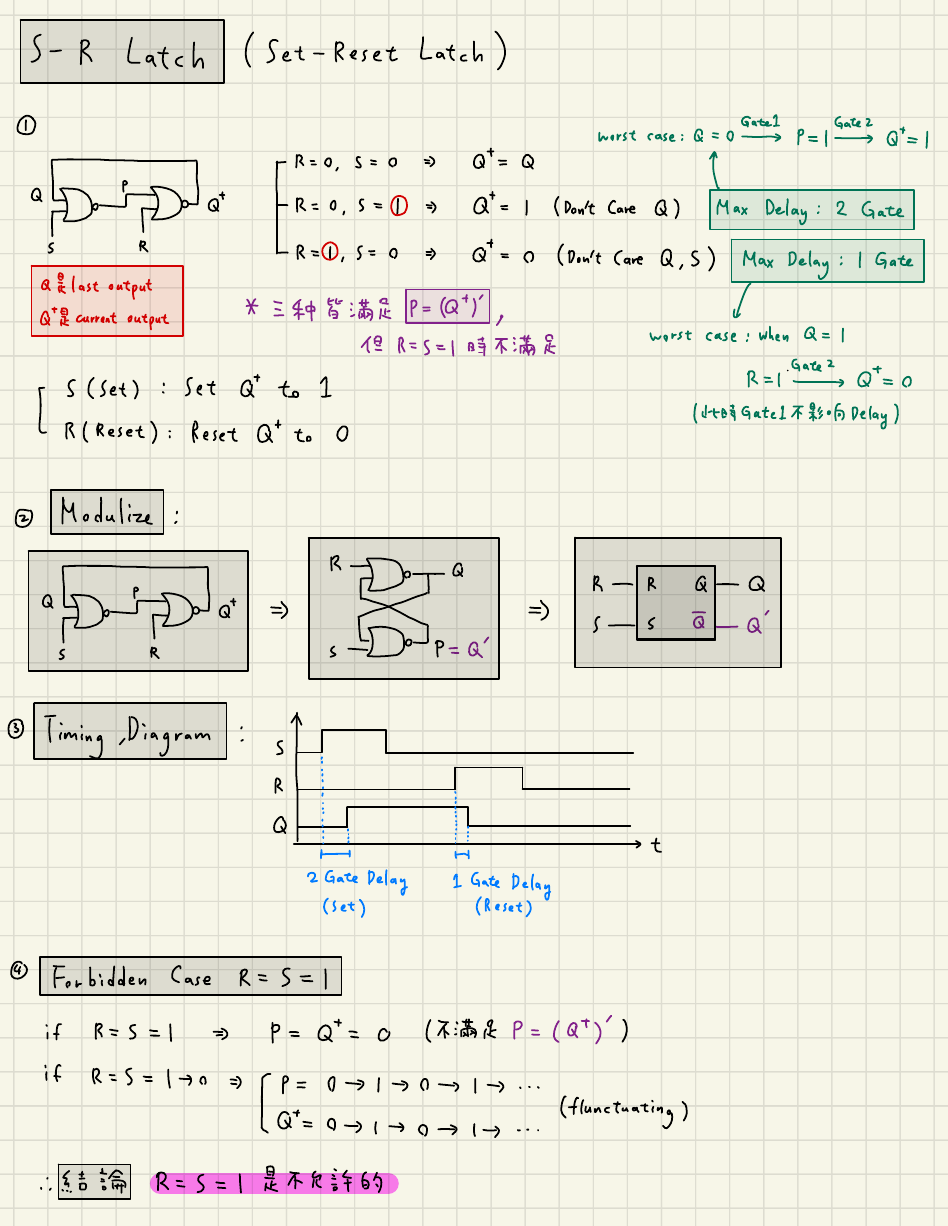

S-R Latch

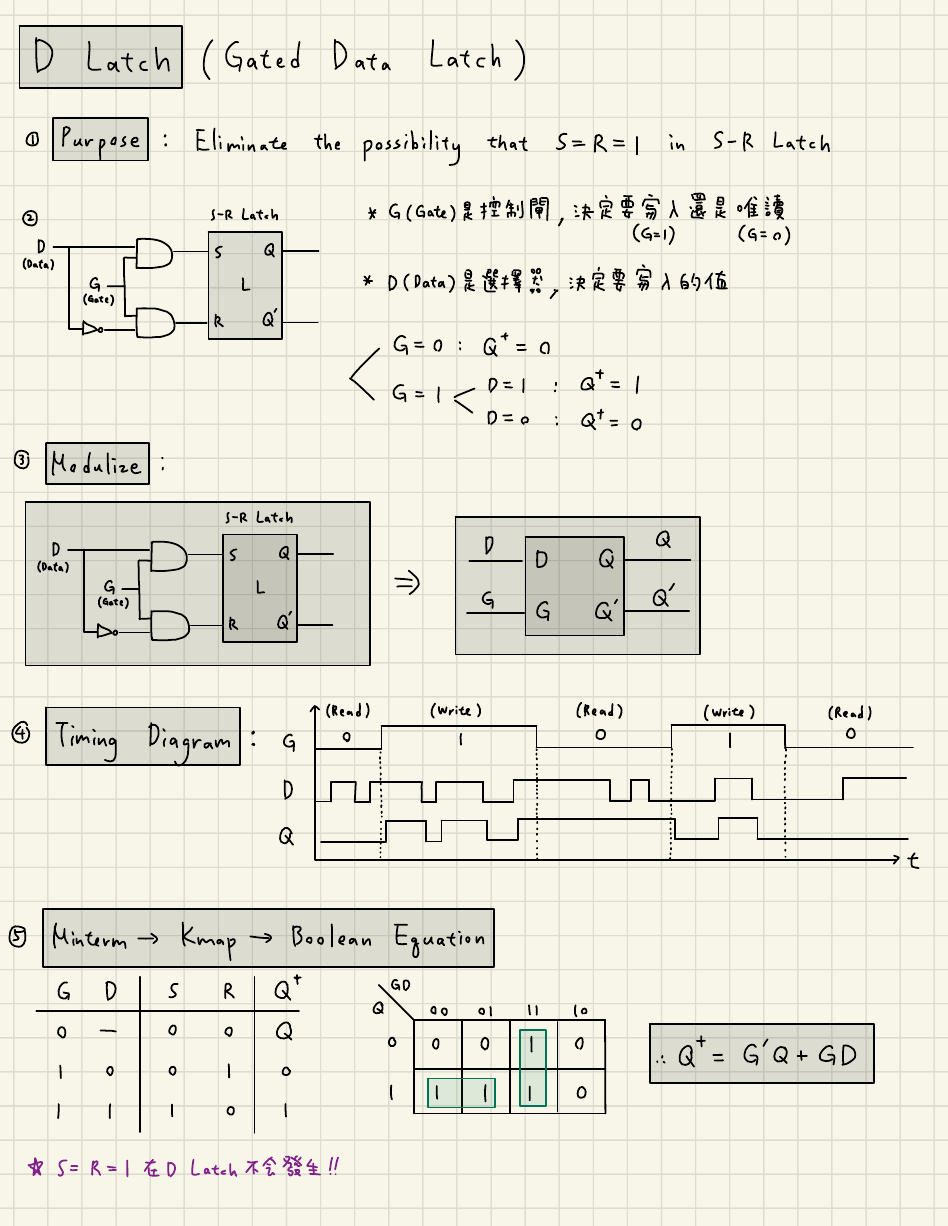

D Latch

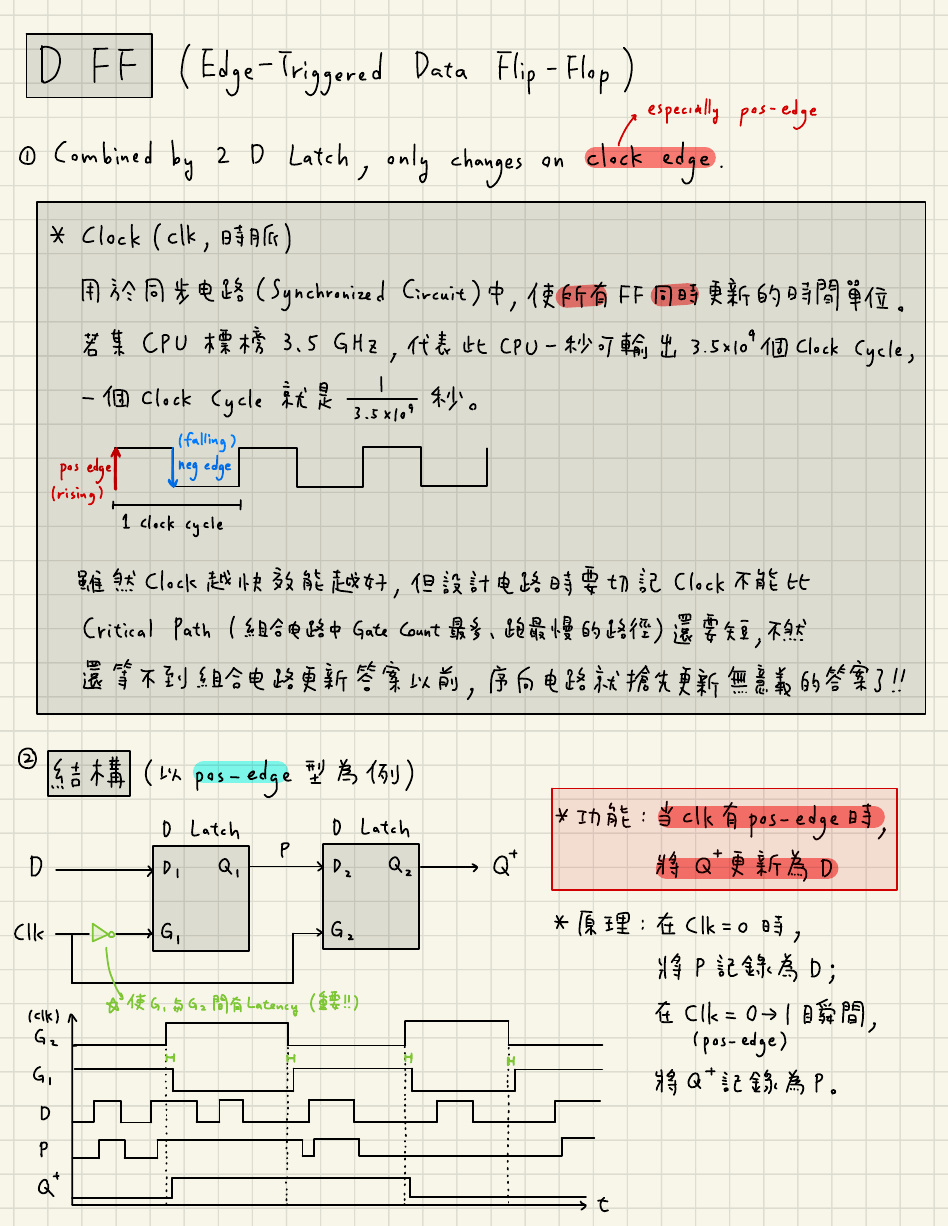

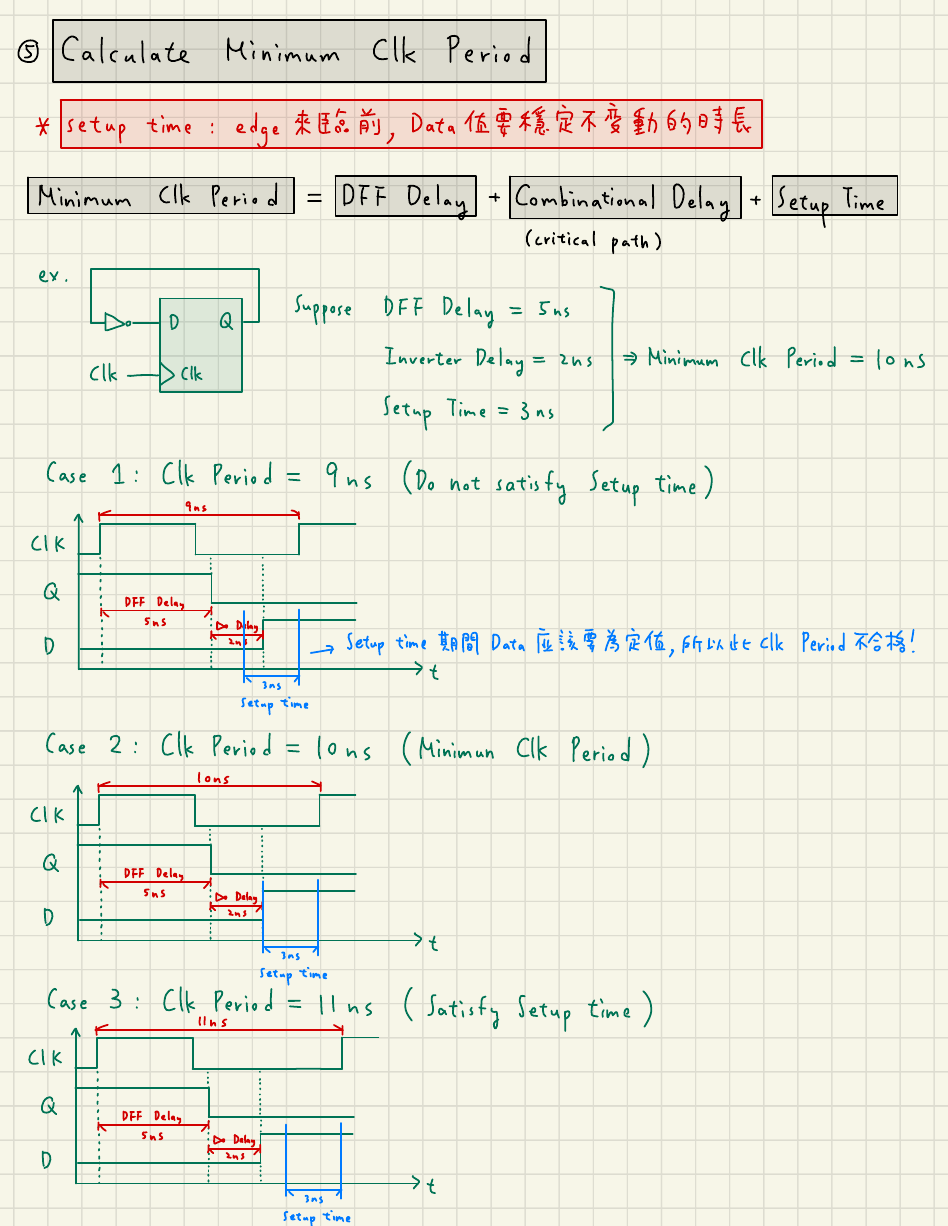

D FF

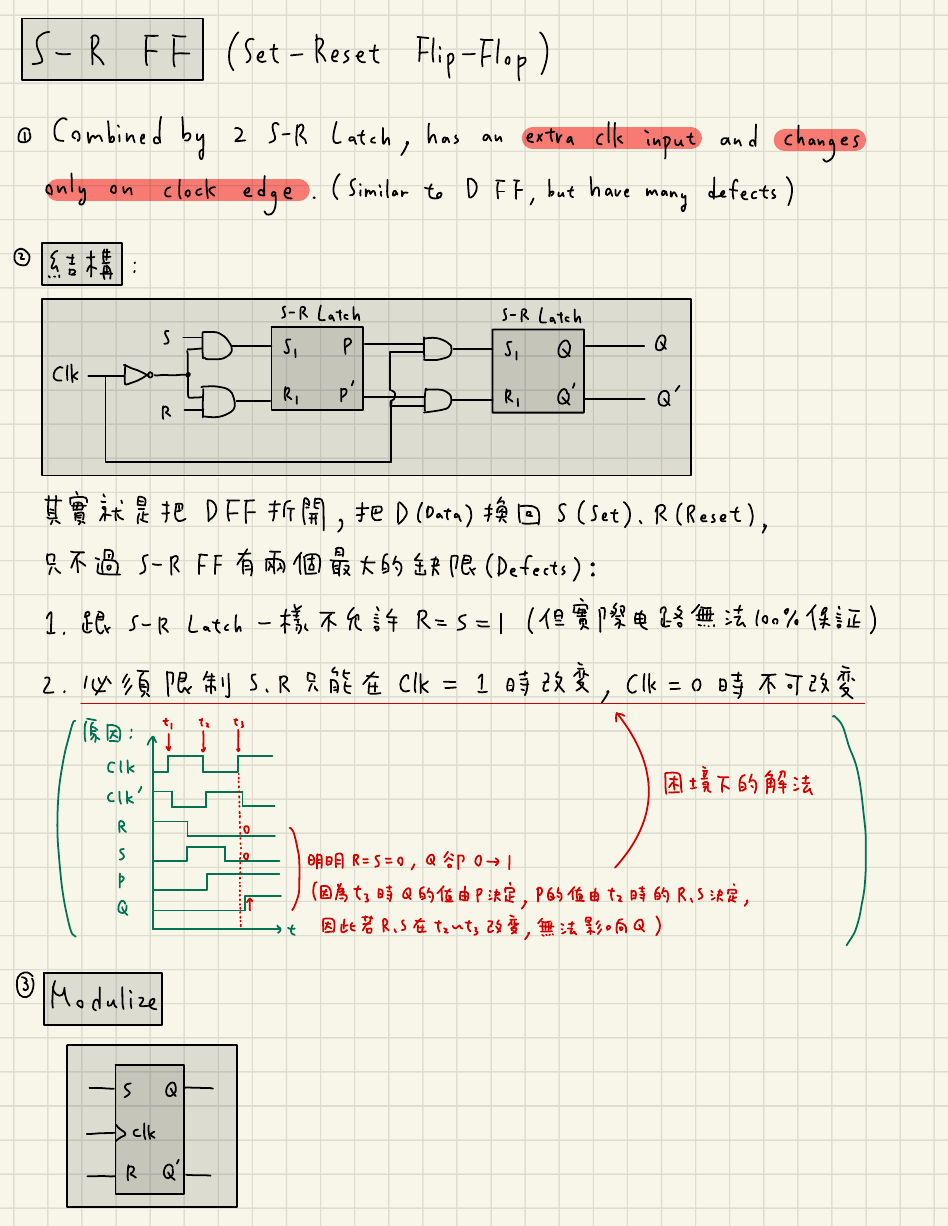

S-R FF

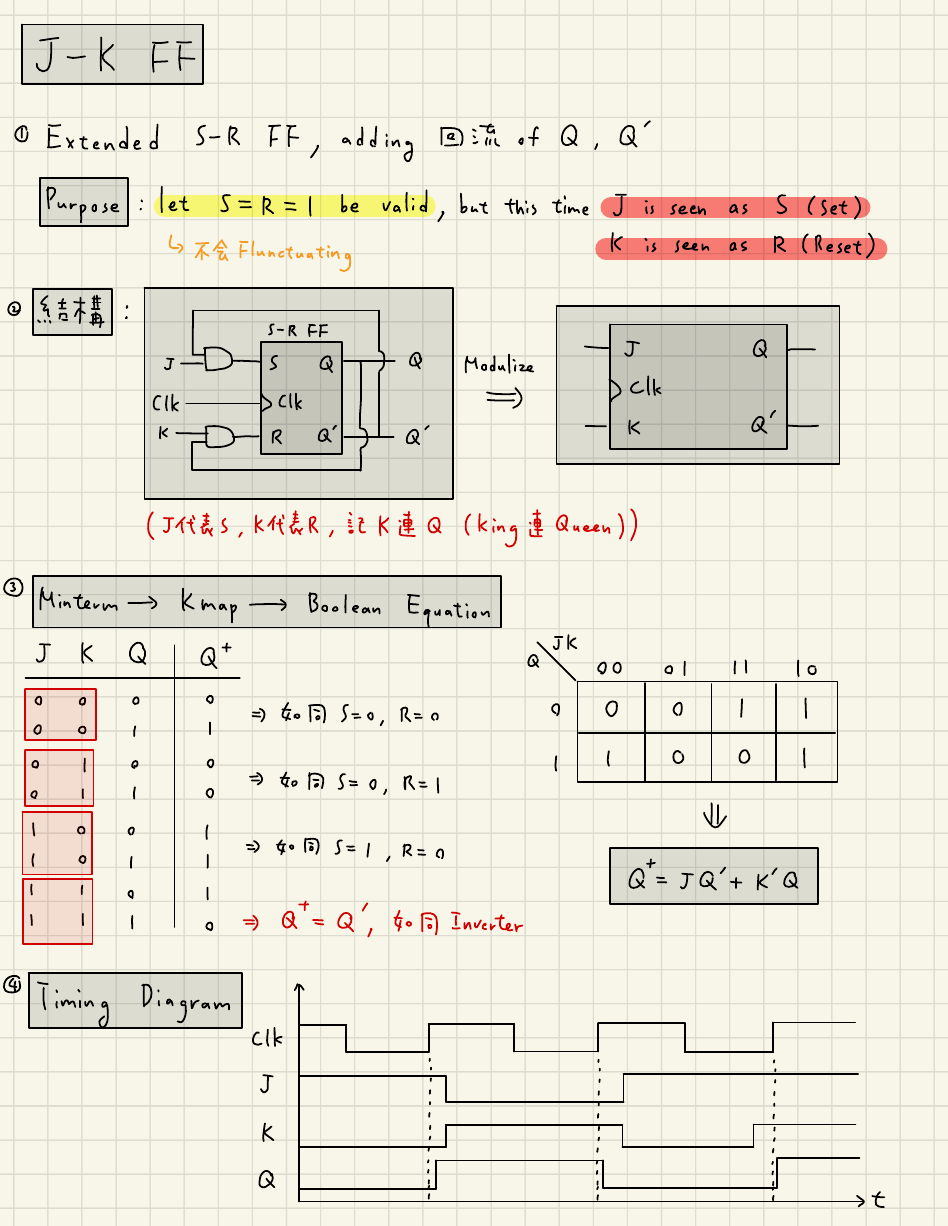

J-K FF

T FF

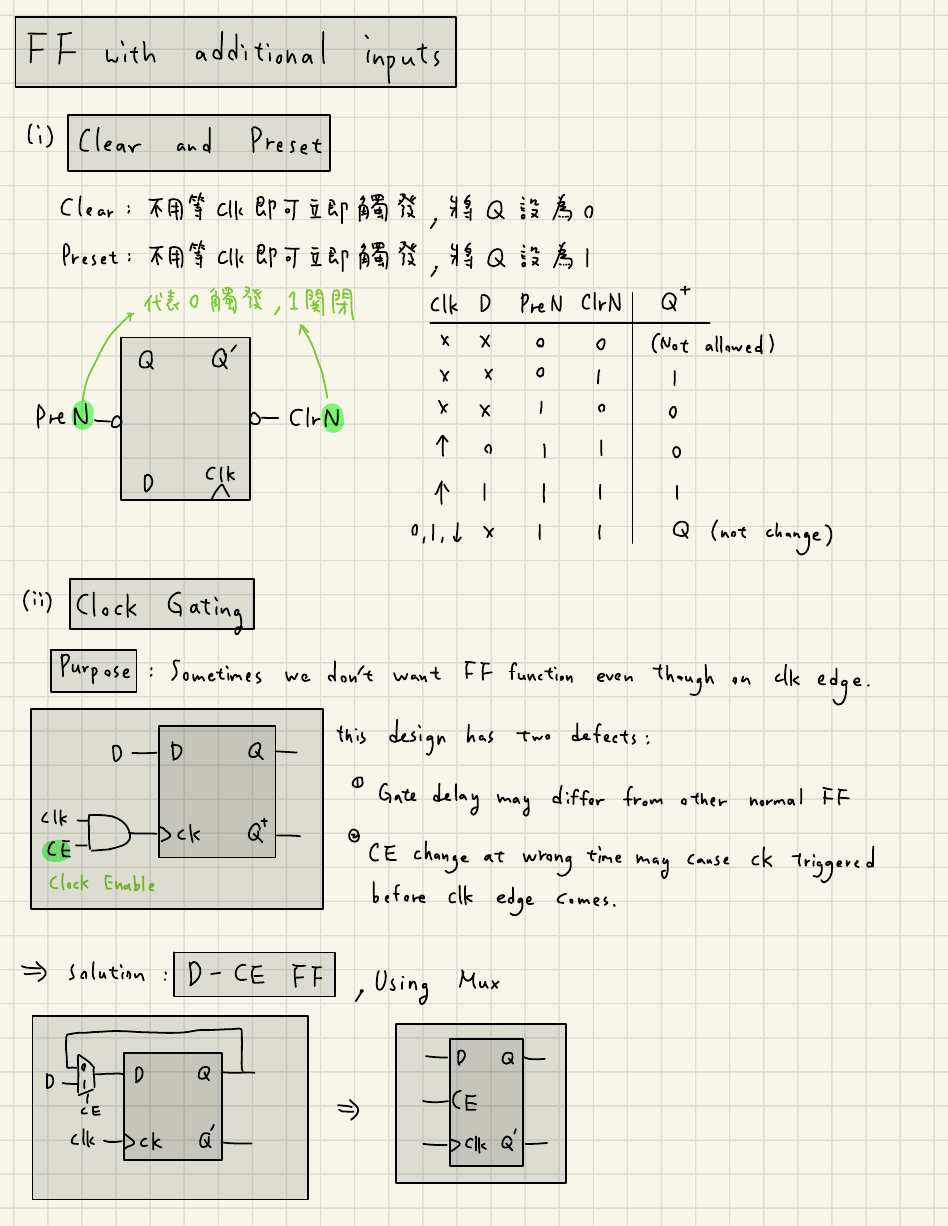

FF w/ additional inputs

On this page
邏輯系統
  1. 1. Outlines & Number Systems

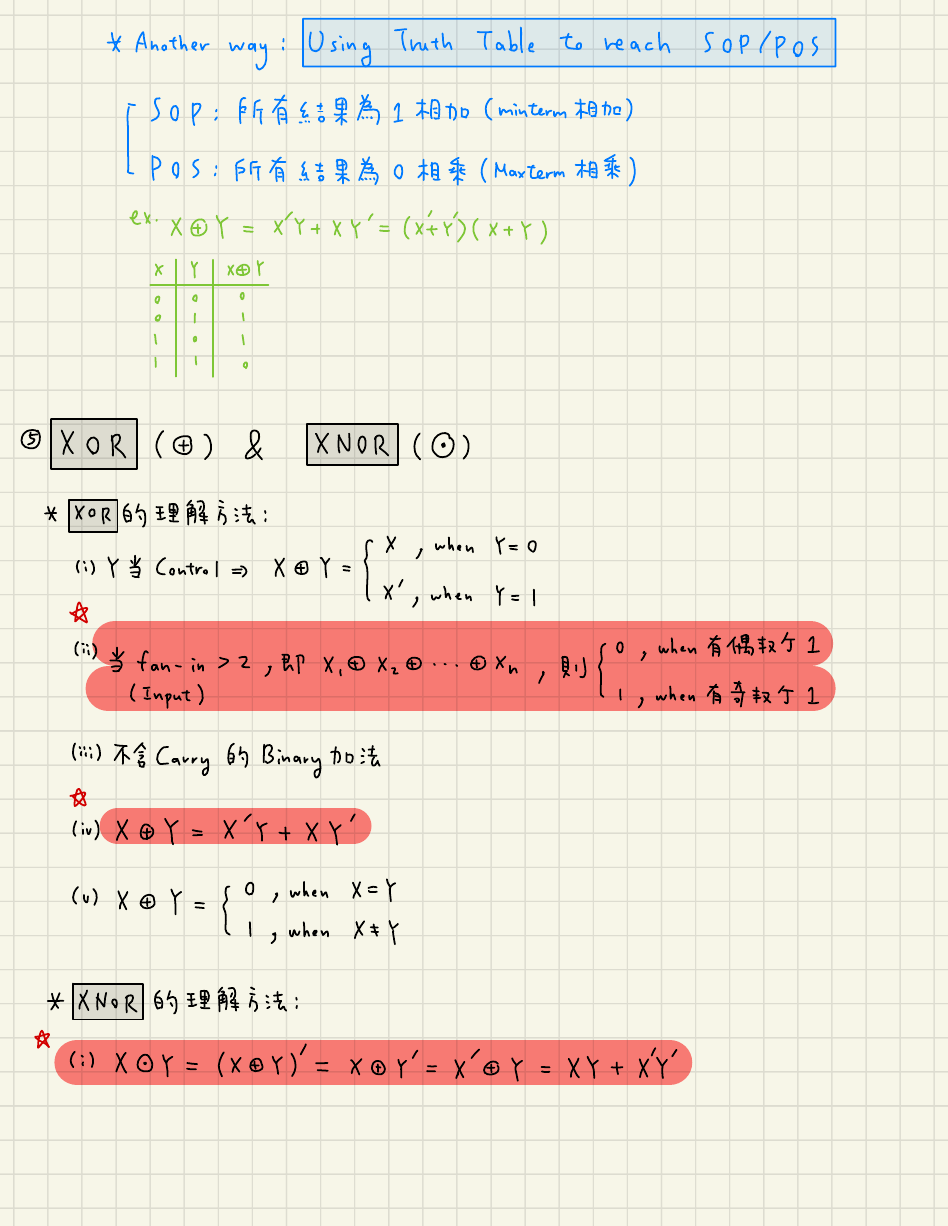

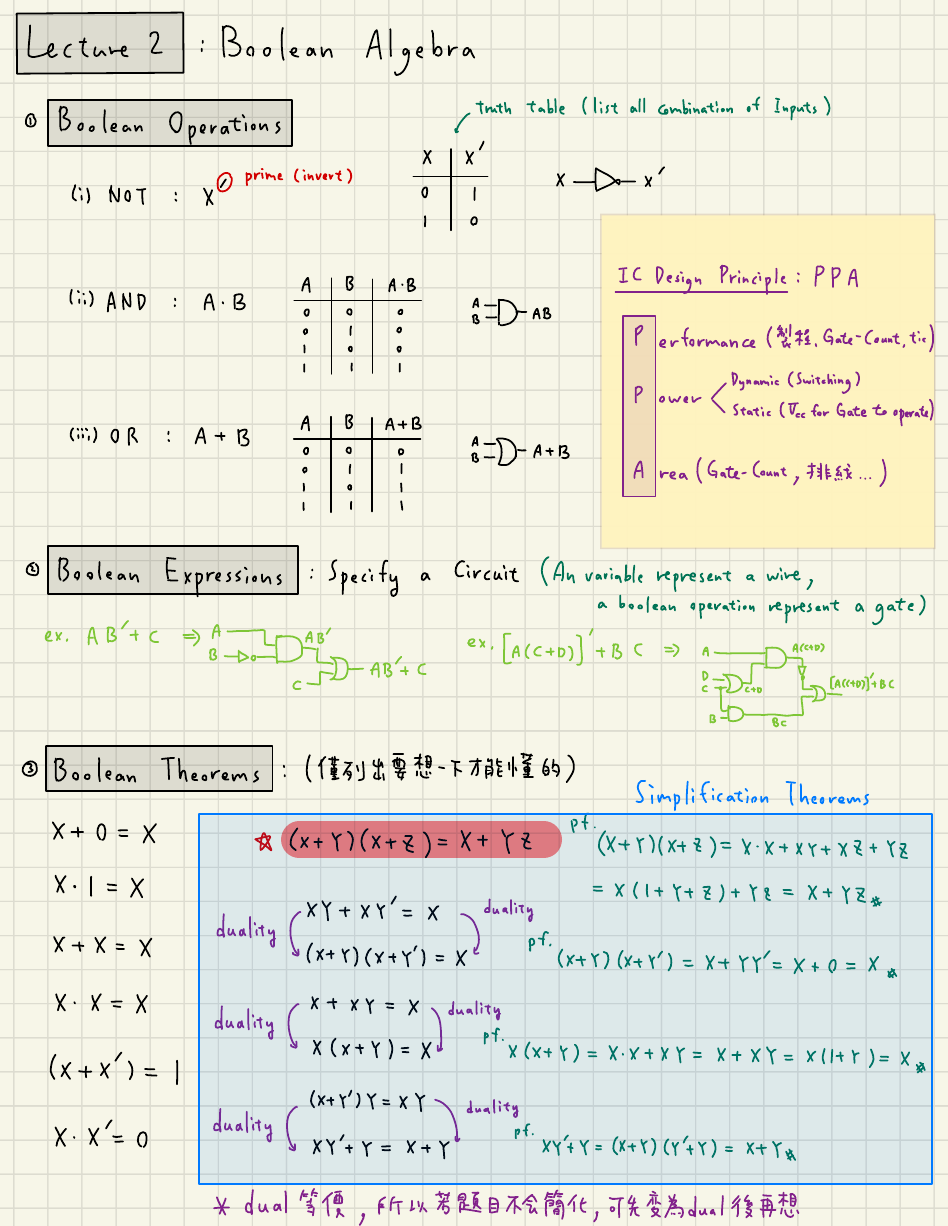

  2. 2. Boolean Algebra

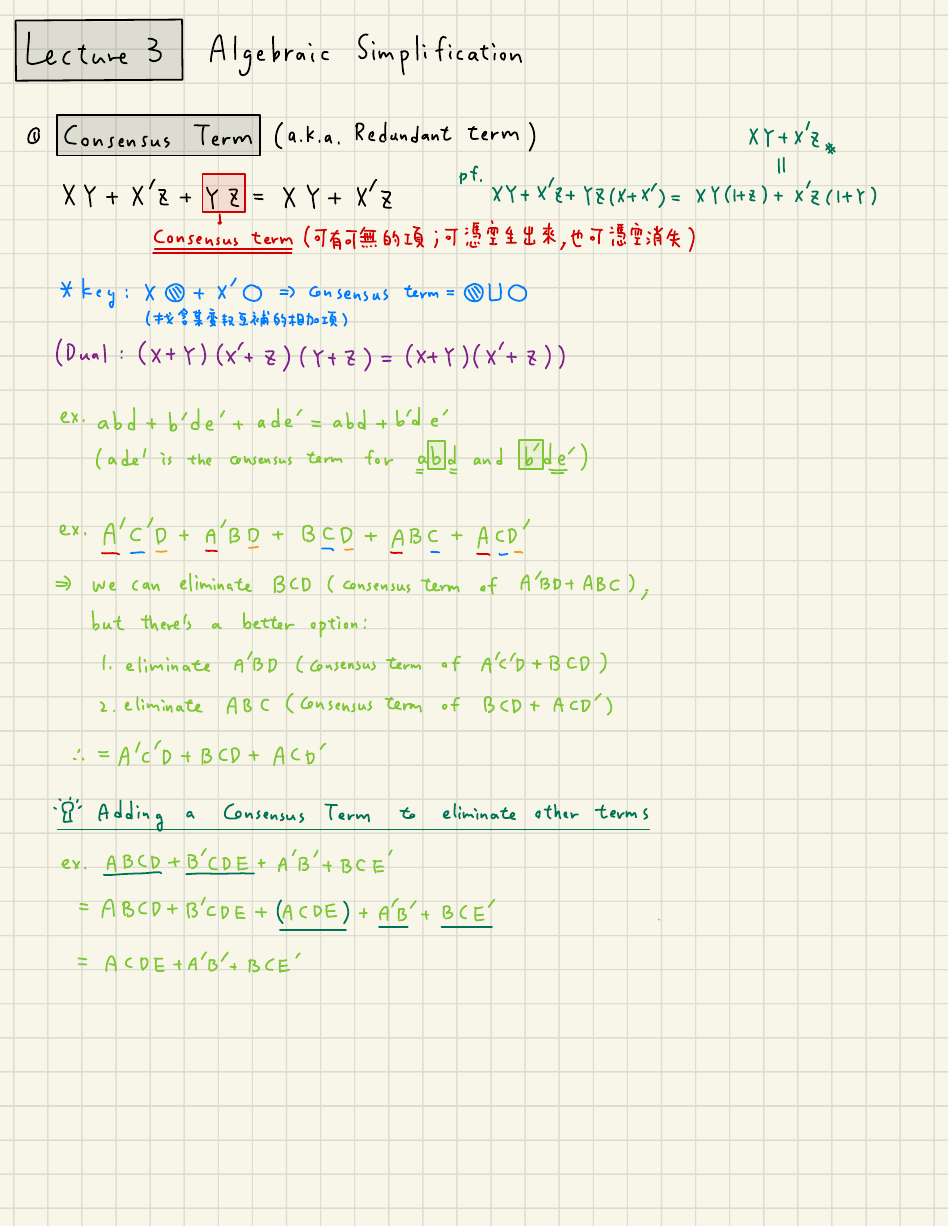

  3. 3. Algebraic Simplification

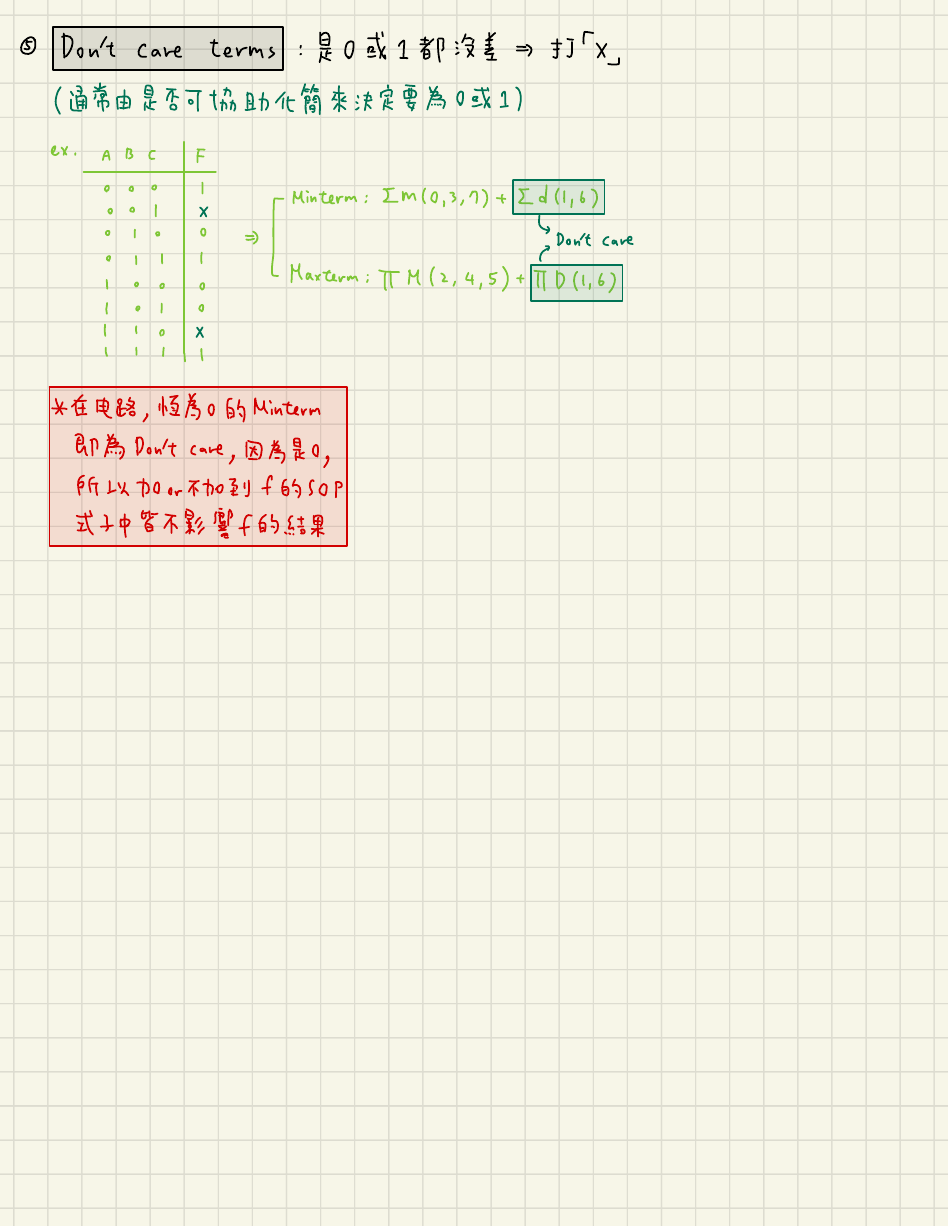

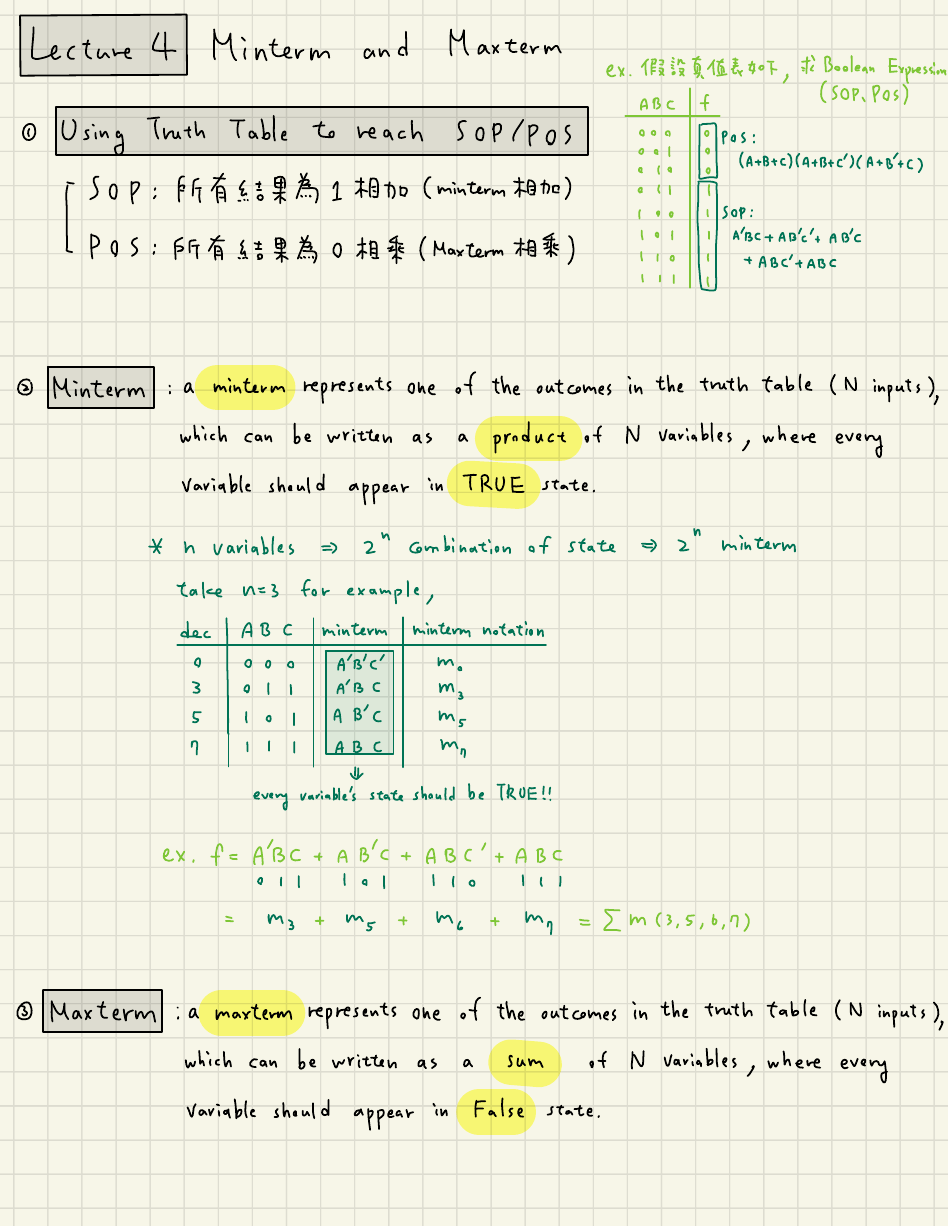

  4. 4. Minterm & Maxterm
  5. 5. K-map

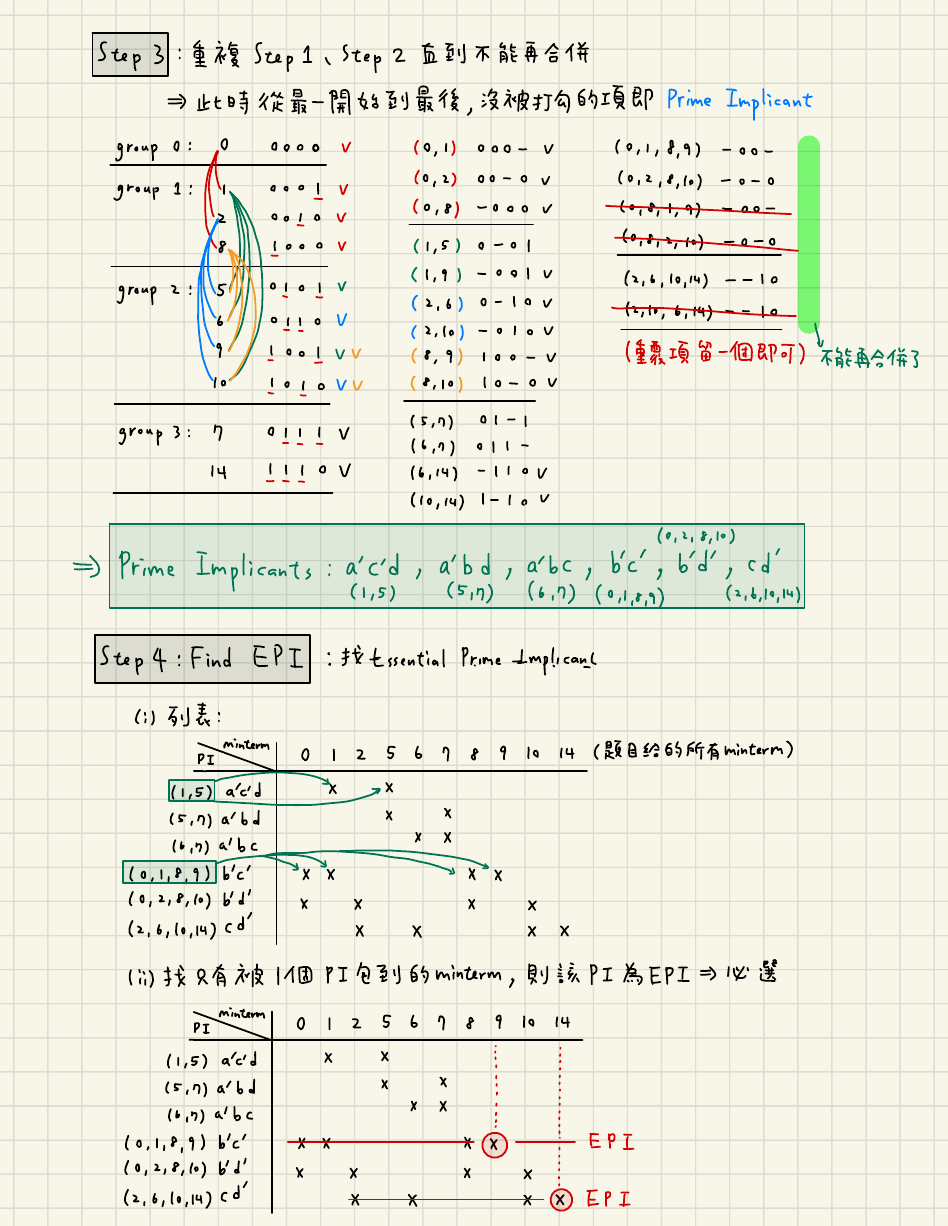

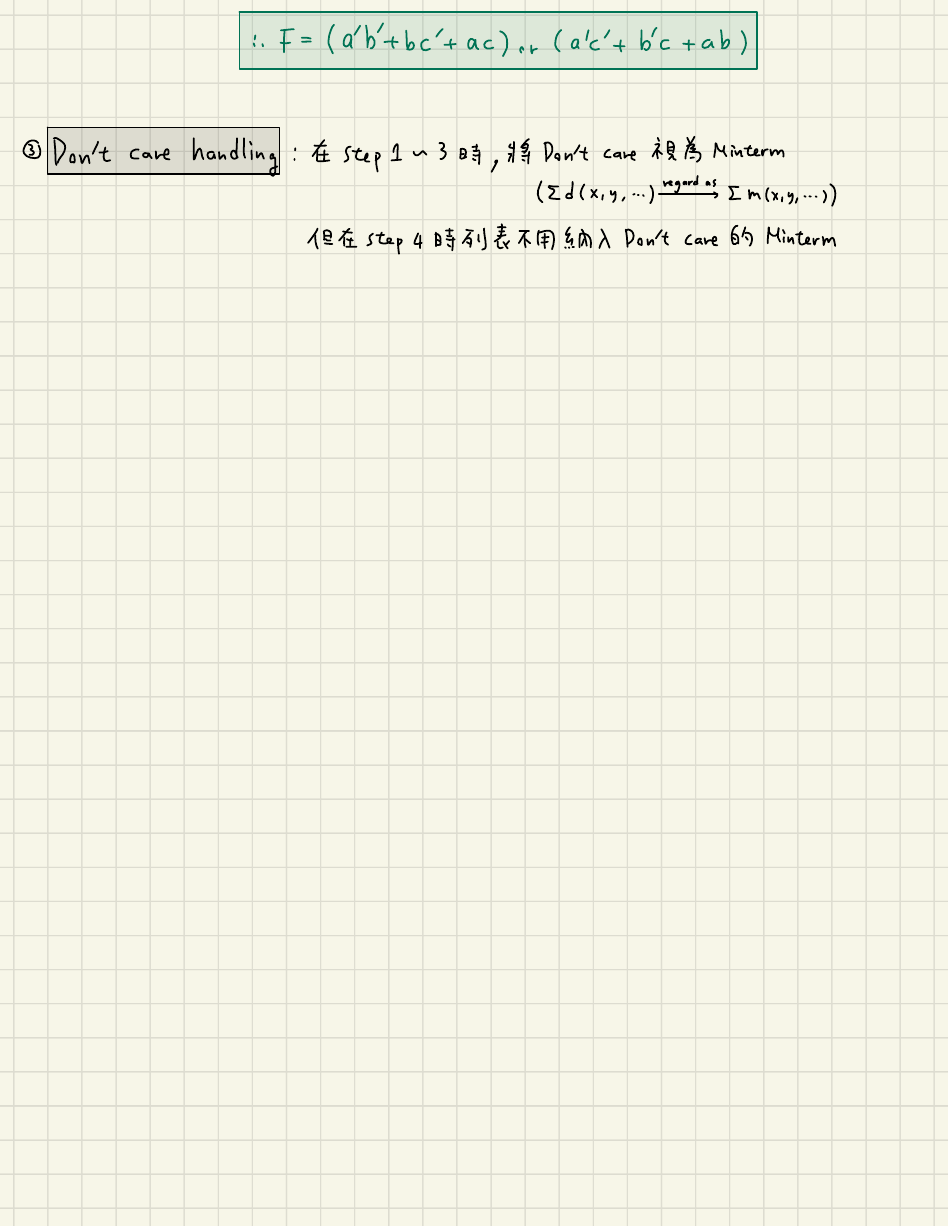

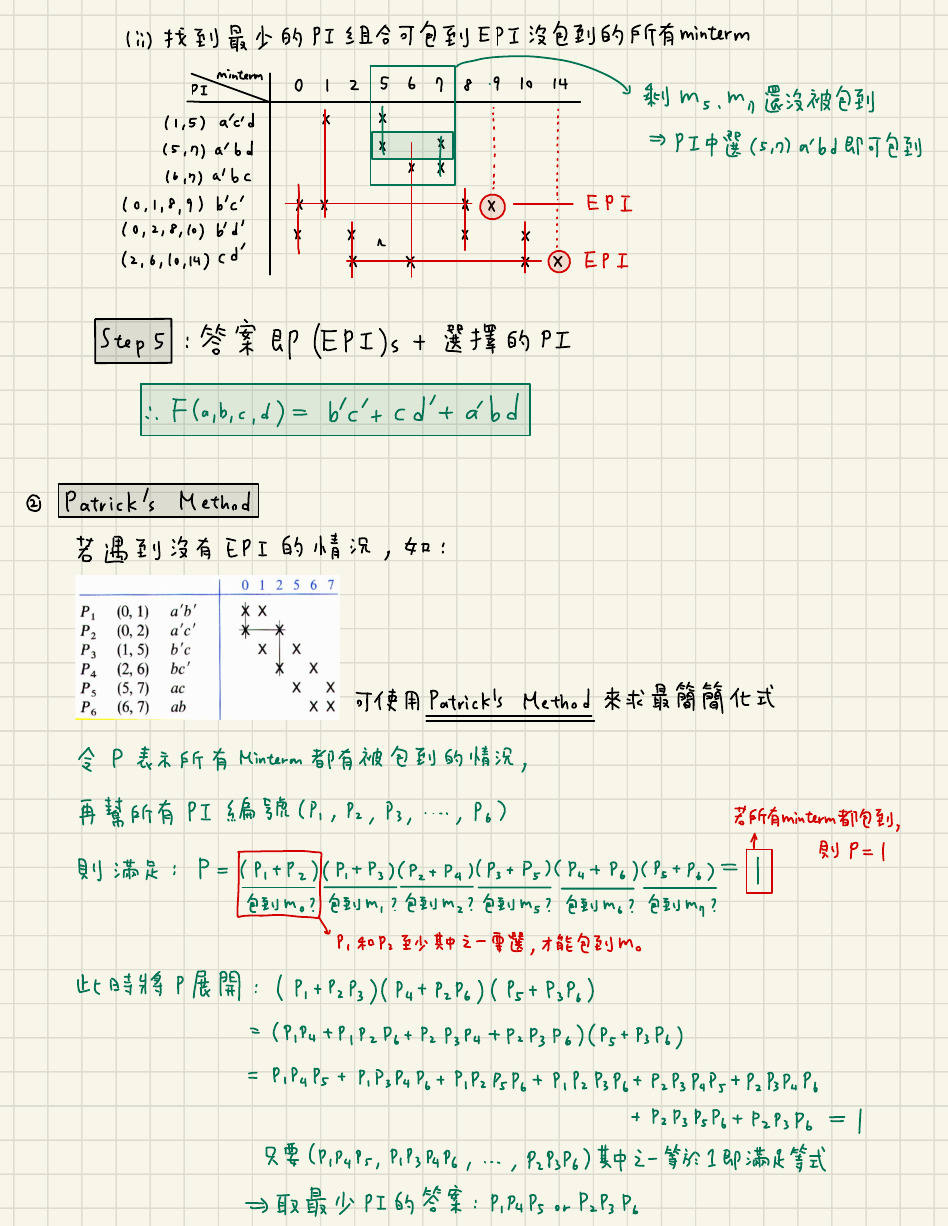

  6. 6. Quine-McCluskey Method
  7. 7. Multi-Level Gate Networks

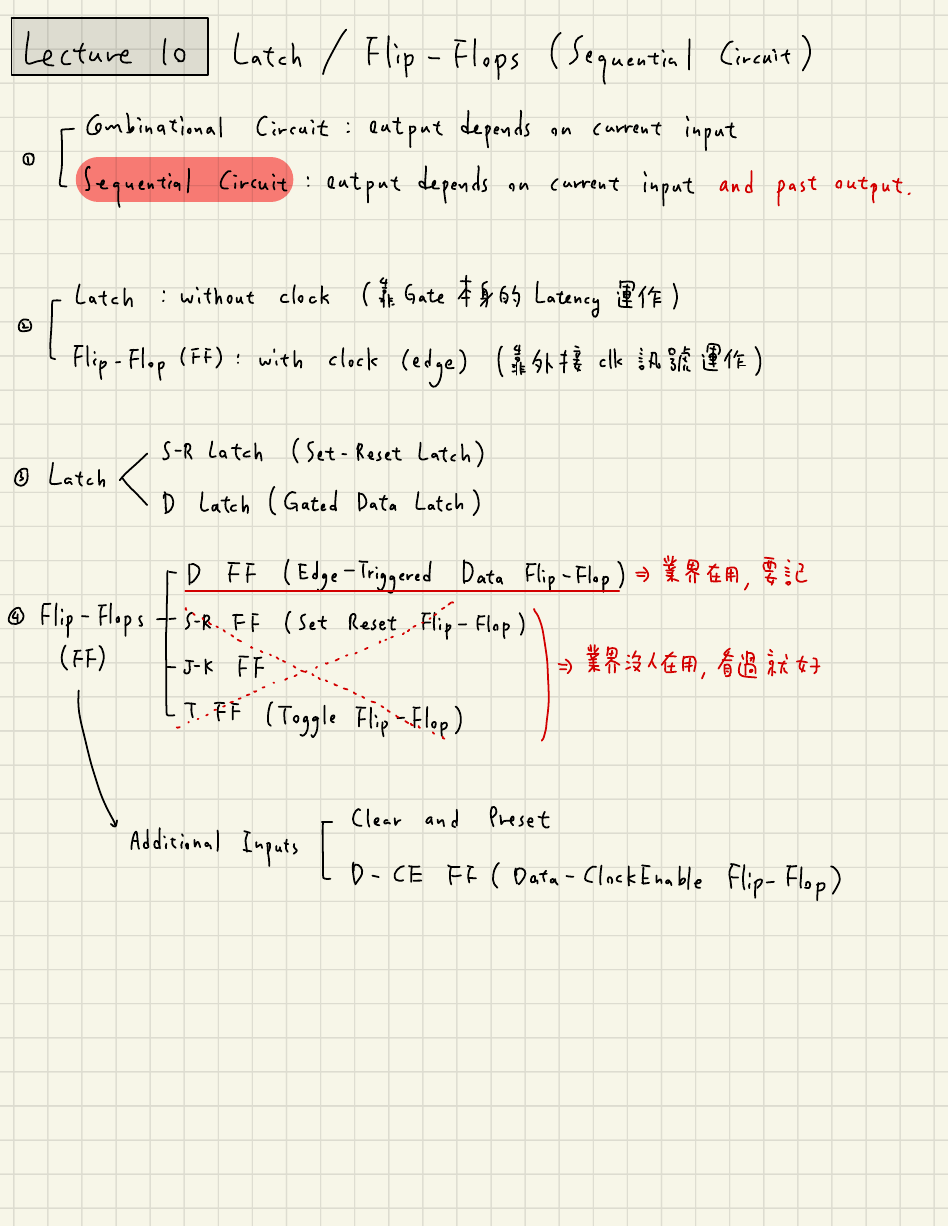

  8. 8. Latch & Flip-Flop

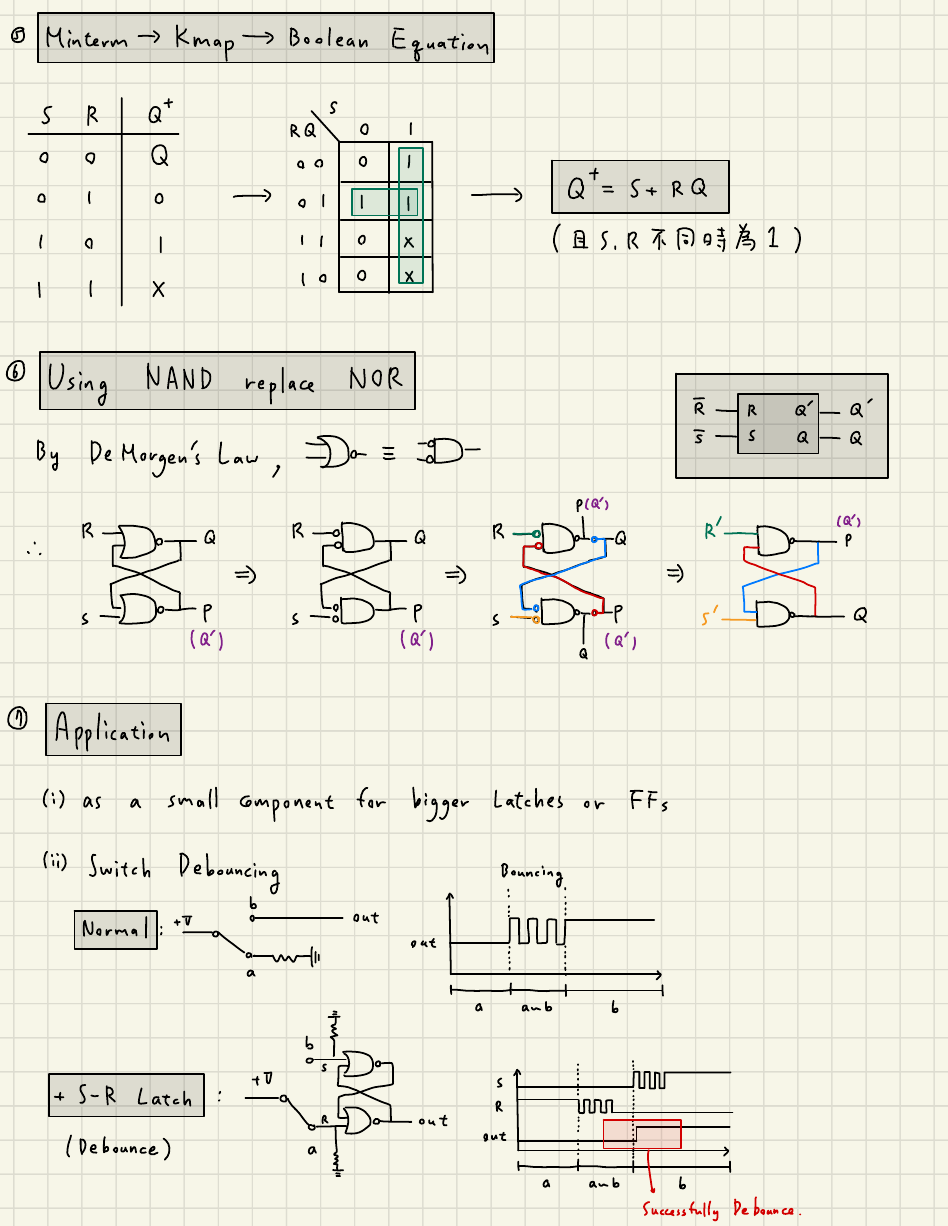

    1. 8.1. S-R Latch
    2. 8.2. D Latch

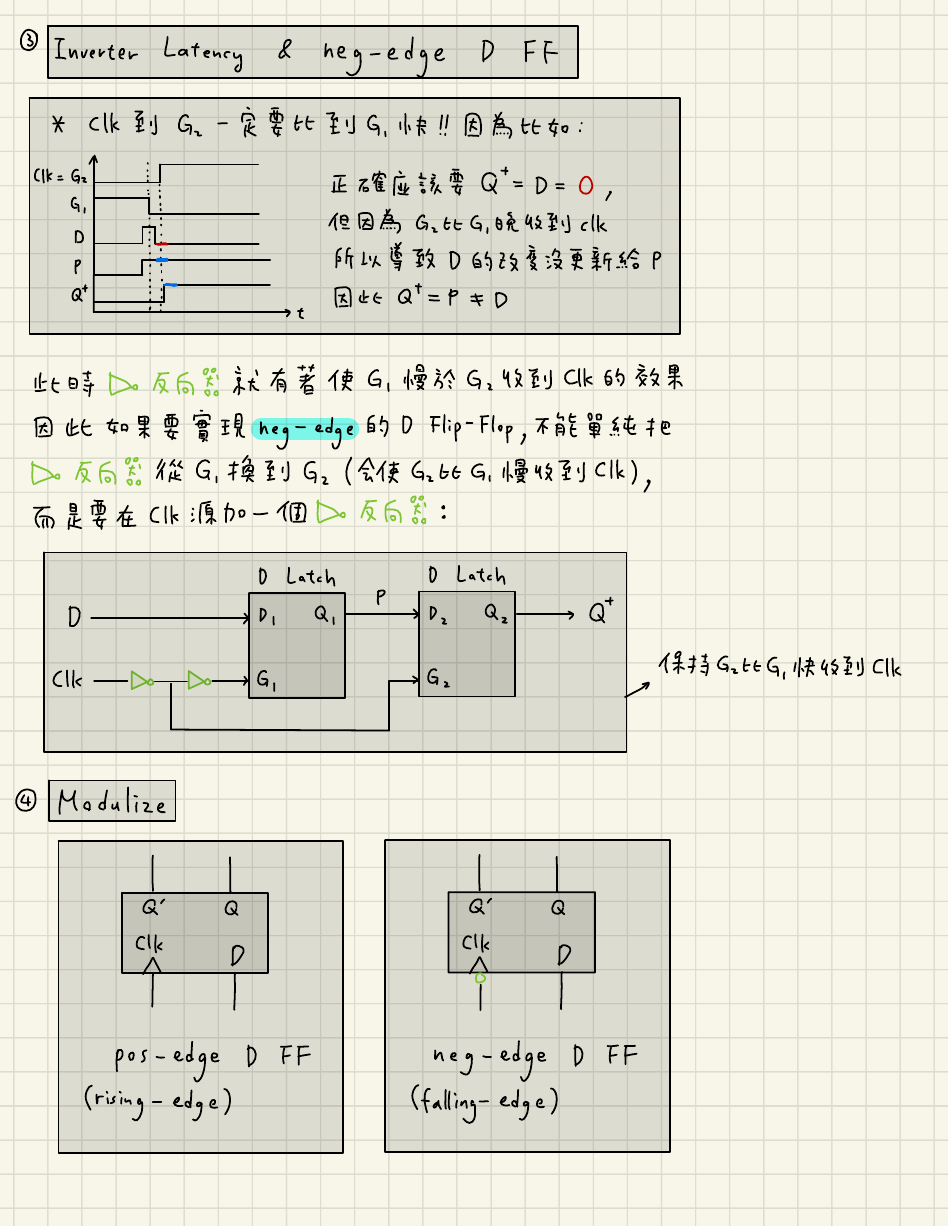

    3. 8.3. D FF
    4. 8.4. S-R FF
    5. 8.5. J-K FF

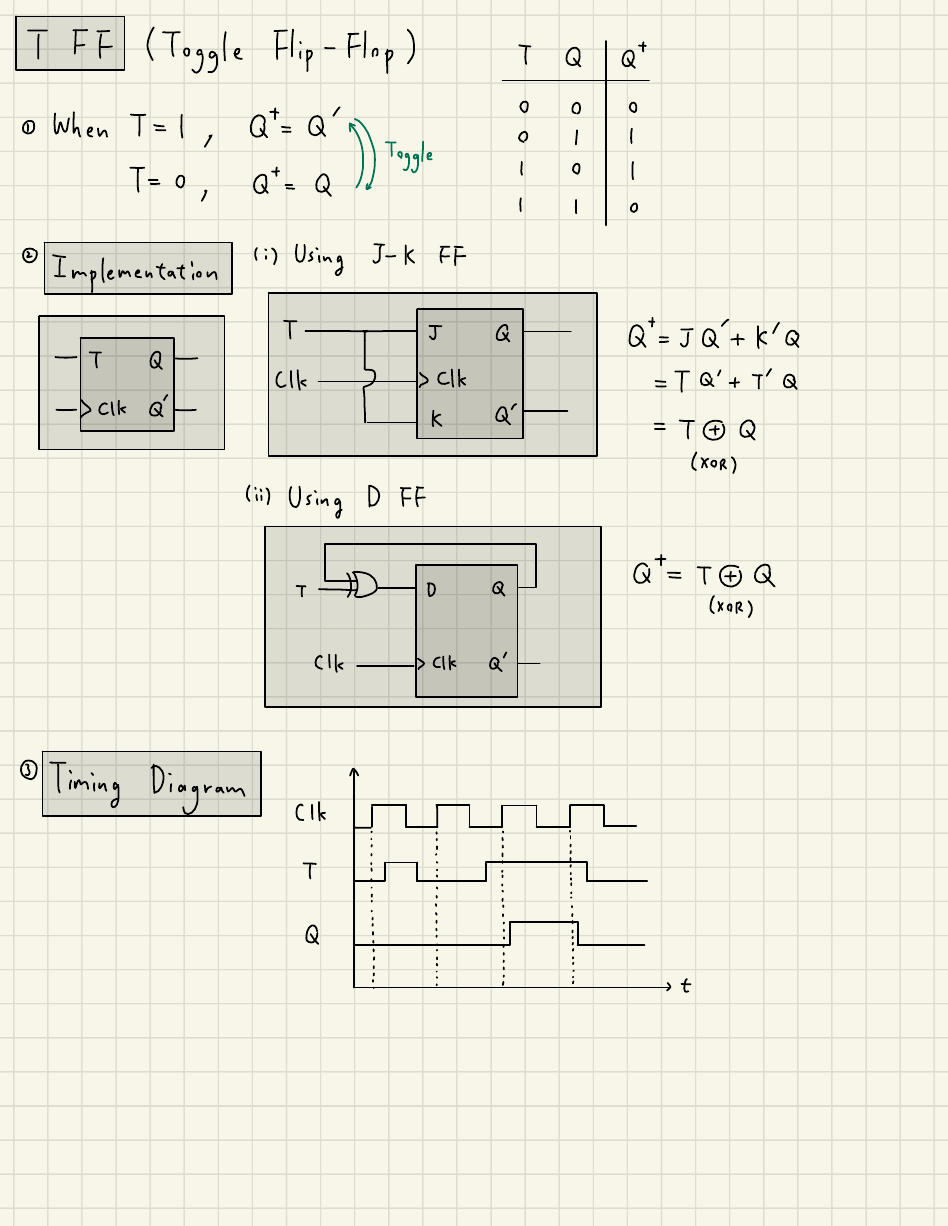

    6. 8.6. T FF
    7. 8.7. FF w/ additional inputs
